Removing B-Pillar Reinforcement

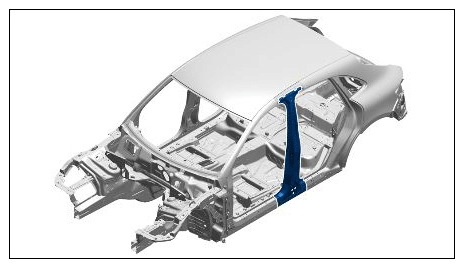

Fig 1: Center Pillar Reinforcement Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of B-pillar reinforcement

Straightening set Body alignment system package WE 1121 Measuring and alignment system, professional WE 1398

1. A window will be cut into the outer B-pillar/roof pillar in the upper B-pillar area.

   Information:  Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

   Information

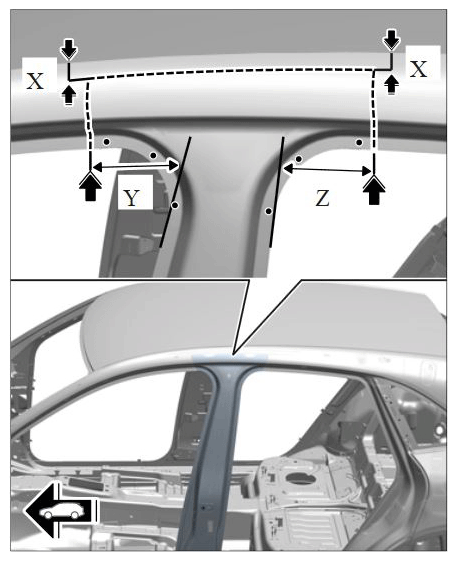

   Mark cuts X, Y and Z  in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

   1. 1.1. Mark and make cuts.

      Distance: 80 mm

      Distance: 110 mm

      Distance: 90 mm

   2. 1.2. Drill out spotwelds using spotweld drill

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing upper B-pillar section

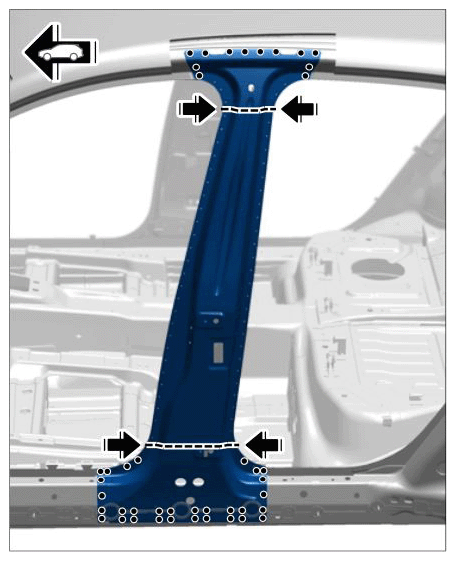

2. Make a rough cut -arrows-  through the B-pillar reinforcement and inner B-pillar.
   1. 2.1. Drill out spotwelds using spotweld drill
   2. 2.2. Remove remaining pieces of B-pillar reinforcement.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing B-pillar reinforcement

3. Drill out spotwelds using spotweld drill

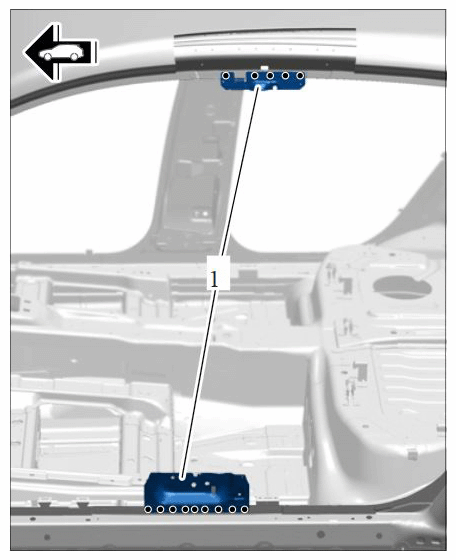

   1. 3.1. Remove remaining pieces -1-  of inner B-pillar.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing remaining pieces of inner B-pillar
