Removing Outer B-Pillar
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

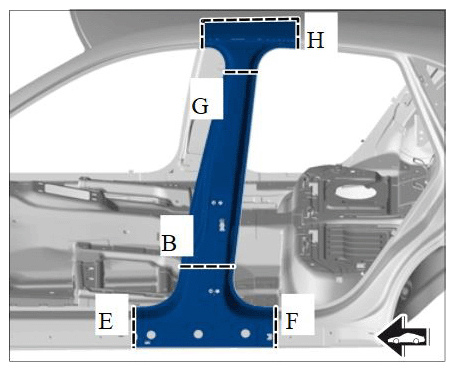

Cut variants
|
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

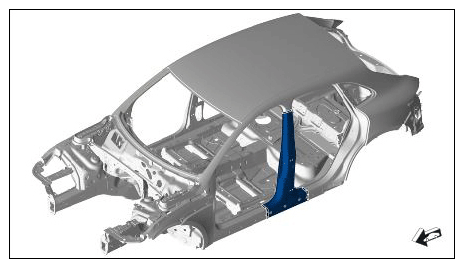

Installation position of B-pillar
Information:
Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

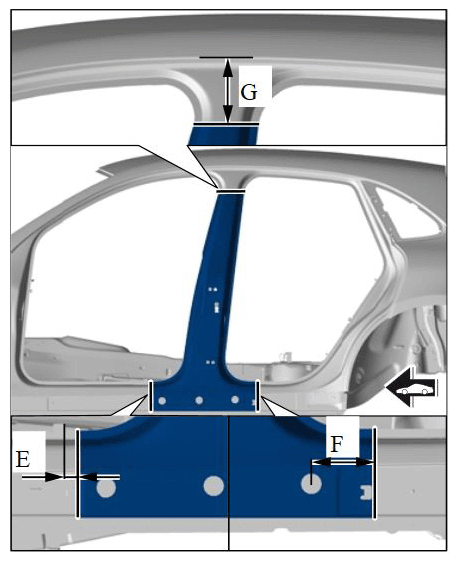

Mark cuts E, F and G
in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.
- Mark and make cuts.
Distance: 23 mm
Distance: 75 mm
Distance: 120 mm
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

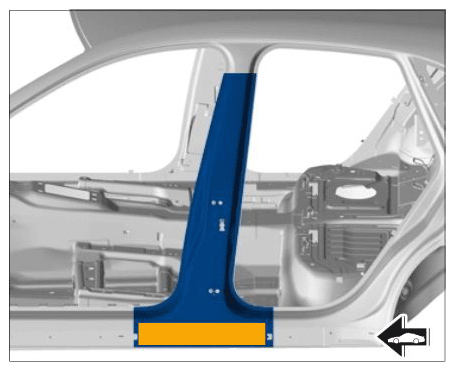

Removing B-pillar
Information:

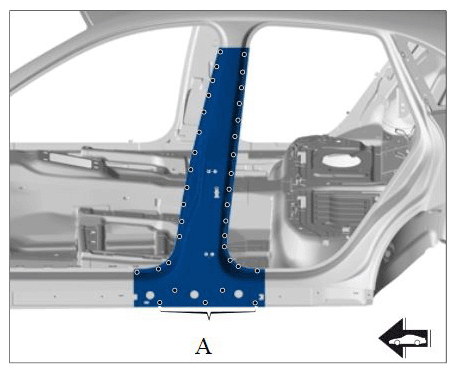

Drill out the connection point on one side only. Do not damage the plate underneath.
- Drill out spotwelds using spotweld drill; see Gr. 2.4
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing B-pillar
- Heat bonding areas.
- 3.1. Remove B-pillar.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing B-pillar
