Preparing B-Pillar For Installation

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information: Adhesive must not be applied to areas to be plug-welded or fully welded using inert gas.

Fit in B-pillar.

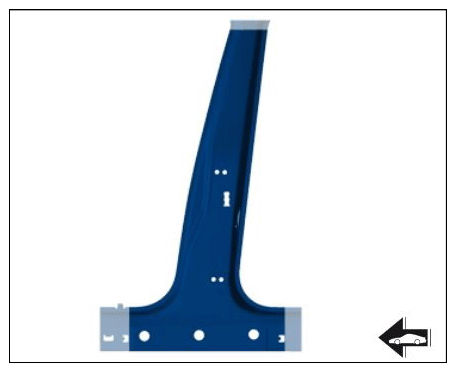

1.1. Cut B-pillar at the transitions to the body leaving an overlap of 30 mm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing B-pillar

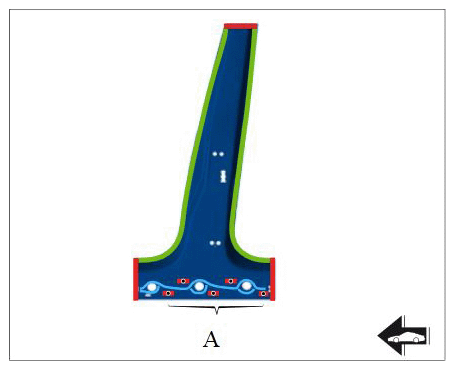

Prepare B-pillar for bonding and welding.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing B-pillar

Green	Resistance spot-welding + bonding
Blue	Bonding
Red	Resistance spot-welding/apply a full weld using inert gas without bonding
