Removing A-Pillar Reinforcement

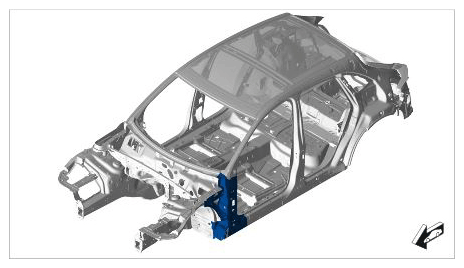

Fig 1: Front Pillar Reinforcement Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of A-pillar reinforcement

1. Remove side member closing element.

   Information:  Drill out the connection point on one side only. Do not damage the plate underneath.

   1. 1.1. Drill out spotwelds using spotweld drill
   2. 1.2. Grind down welded seams -arrows-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

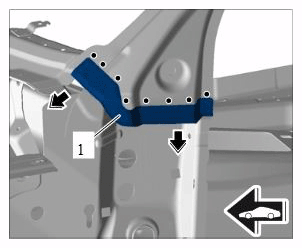

      Removing side member closing element

   Information:  Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

2. Mark and make a rough cut -arrows-  .

   Information:  Drill out the connection point on one side only. Do not damage the plate underneath.

   1. 2.1. Drill out marked spotwelds using spotweld drill

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

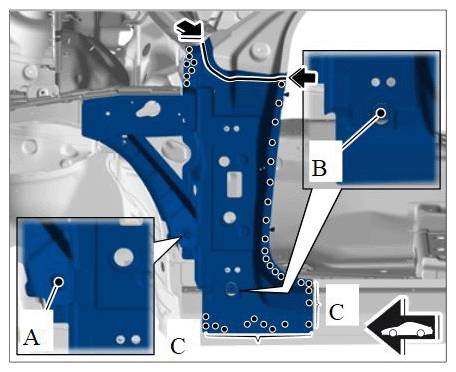

      Removing A-pillar reinforcement

   Drill out the connection point on one side only. Do not damage the plate underneath.

3. Drill out marked spotwelds using spotweld drill
   1. 3.1. Grind down welded seams -arrows-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

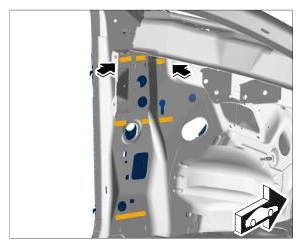

      Removing A-pillar reinforcement

4. Heat bonding areas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

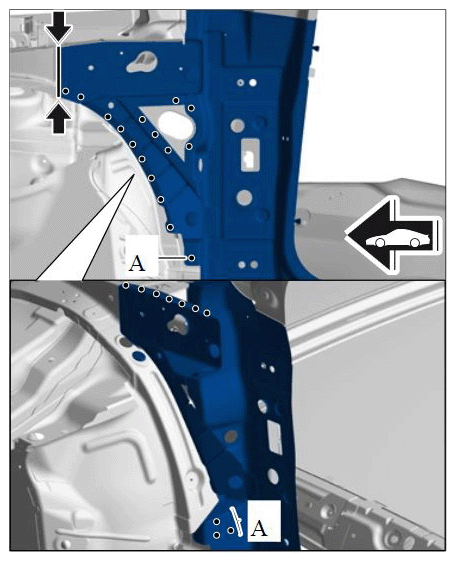

   Heating bonding areas

5. Heat bonding areas from inside -arrows-  .
   1. 5.1. Remove A-pillar reinforcement.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

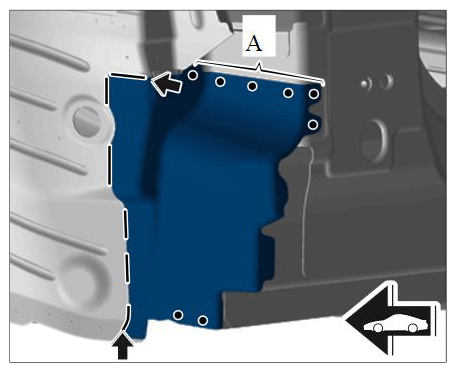

      Heating bonding areas

6. Remove remaining piece.
   1. 6.1. Drill out spotwelds using spotweld drill; see Gr. 2.4
   2. 6.2. Remove remaining piece of A-pillar reinforcement -1-  in a downward direction -arrows-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

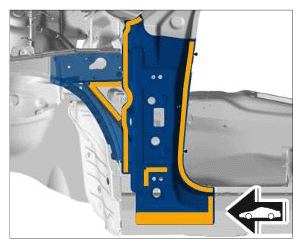

      Removing remaining piece
