Removing A-Pillar

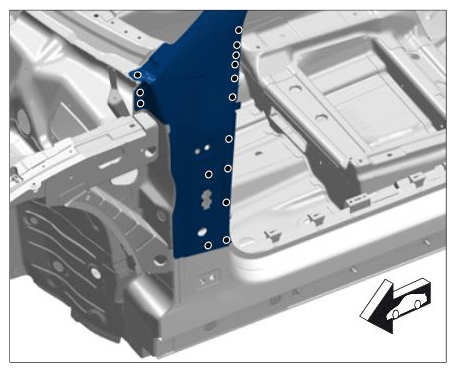

Fig 1: Front Pillar Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

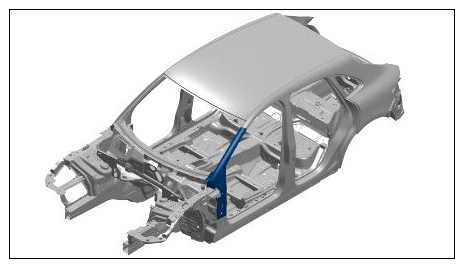

Installation position of A-pillar

1. Remove wing bracket.

   Information:  Drill out the connection point on one side only. Do not damage the plate underneath.

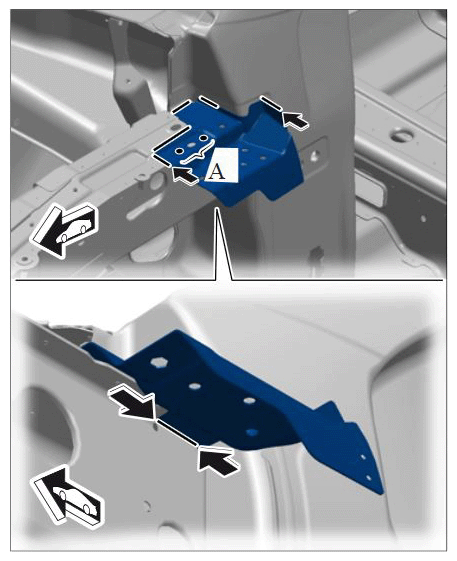

   1. 1.1. Drill out spotwelds -A-  using spotweld drill
   2. 1.2. Grind down welded seams -arrows-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing wing bracket

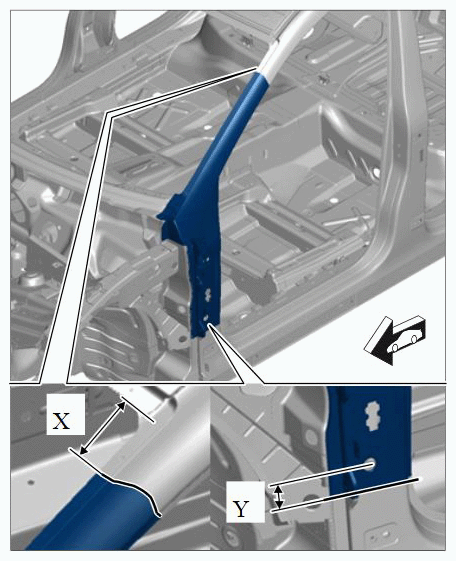

   Information:  Mark cuts X & Y  in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

   Information:  Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

2. Mark and make cuts. Distance: 70 mm → Distance: 65 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing A-pillar

   Information:  Drill out the connection point on one side only. Do not damage the plate underneath.

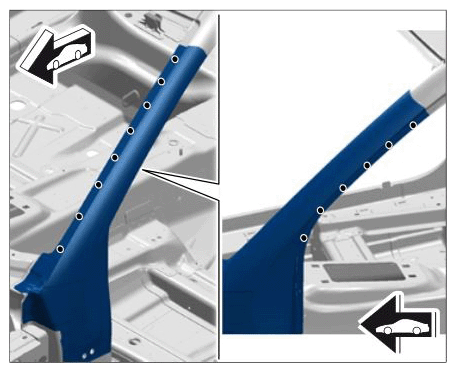

3. Drill out spotwelds using spotweld drill

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing A-pillar

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing A-pillar

4. Remove A-pillar.
5. Remove remaining piece of wing attachment strip.

   Information:  Drill out the connection point on one side only. Do not damage the plate underneath.

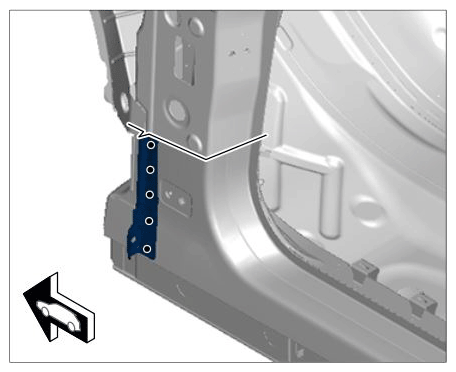

   1. 5.1. Drill out spotwelds using spotweld drill

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing wing attachment strip
