Preparing A-Pillar For Installation

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

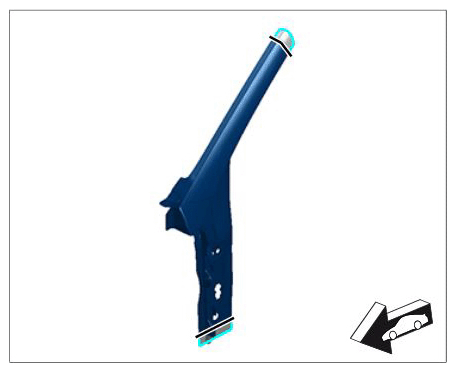

Fit in A-pillar.

1.1. Cut A-pillar at the transitions to the body leaving an overlap of 30 mm.
1.2. Fit in A-pillar again.

1.3. Make cuts through the A-pillar and body in the overlap areas.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing A-pillar

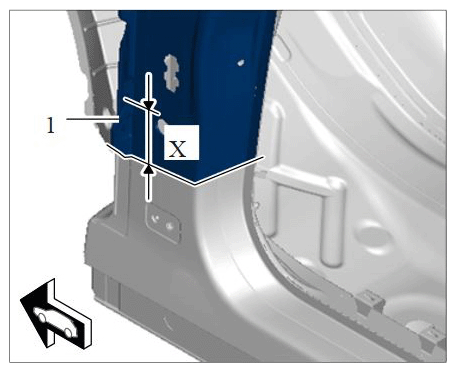

Information: Shorten the wing attachment strip to prevent an overlap in the welded area on the A-pillar.

Cut back the wing rail -1- . Dimension x: 90 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing wing rail

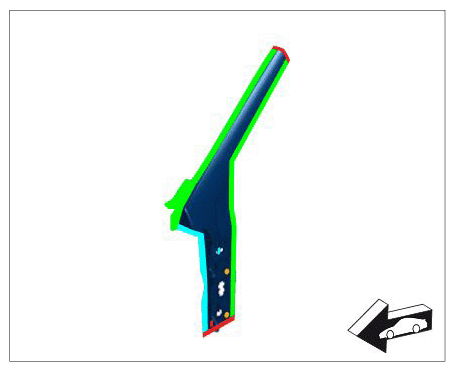

Prepare connection areas for bonding and welding.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing A-pillar

Orange	Resistance spot-welding
Green	Resistance spot-welding + bonding
Blue	Bonding
Red	Plug-welding/apply a full weld using inert gas without bonding

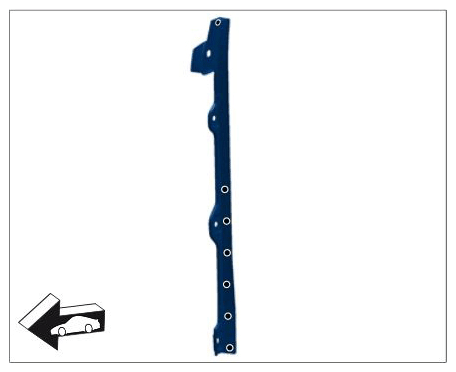

Prepare wing rail.

4.1. Drill holes for plug-welding in the marked areas on the rail using a drill bit with a diameter of Diameter: 8.0 mm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing wing rail

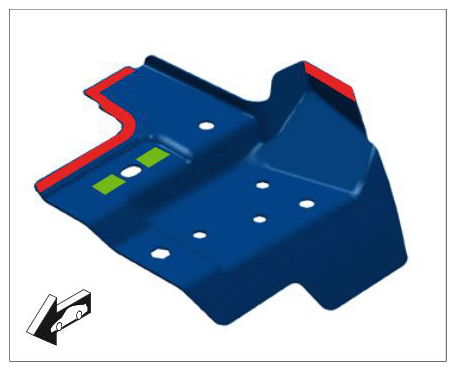

Prepare wing bracket for welding.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing wing bracket
