Removing Rear Cross Member

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

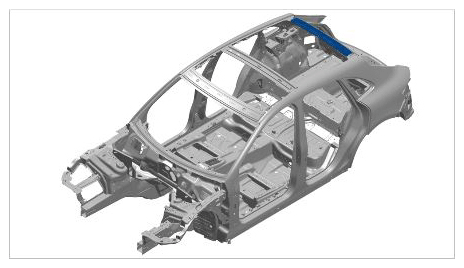

Fig 1: Rear Cross Member Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of rear cross member

Information: Drill out the connection point on one side only. Do not damage the plate underneath.

Drill out spotwelds using spotweld drill

1.1. Heat bonding areas marked in yellow.

1.2. Remove upper part of rear cross member.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

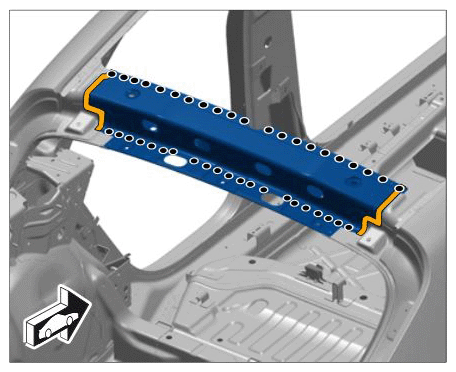

Removing upper part of rear cross member

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

Drill out spotwelds using spotweld drill

2.1. Remove lower part of cross member.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

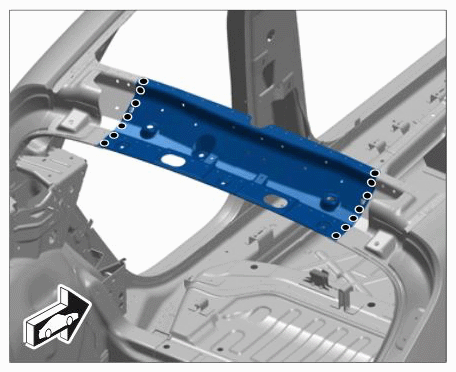

Removing lower part of rear cross member
