Preparing Rear Cross Member For Installation
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Fit in rear cross member.
- Prepare rear cross member for bonding and welding.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

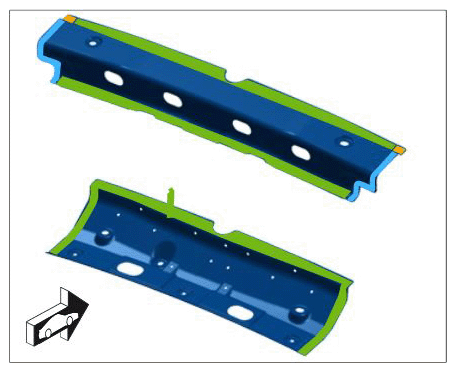

Preparing rear cross member
| Green |
Resistance spot-welding |
| Blue |
Bonding |
| Orange |
Bonding + resistance spot-welding |
