Removing Upper Front Roof Frame
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information:
Drill out the connection point on one side only. Do not damage the plate underneath.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

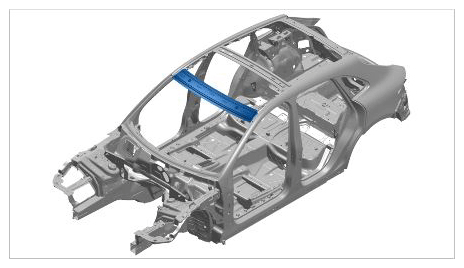

Installation position of upper front roof frame

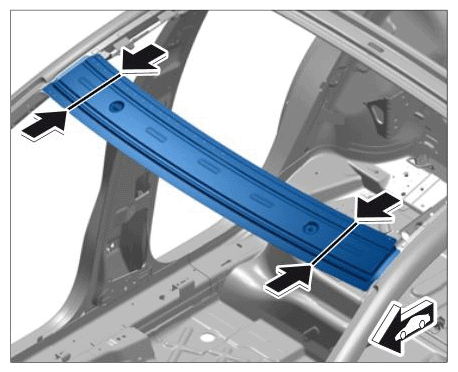

- Roughly cut out upper and lower part of roof frame -arrows-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing upper front roof frame
- Drill through spotwelds using a spotweld drill
Information:

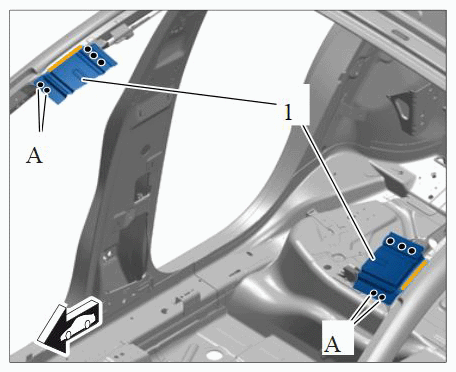

Drill out spotwelds A
through two plate thicknesses.
- 2.1. Drill through spotwelds in area -A-
using a spotweld drill
- 2.2. Heat bonding areas.
- 2.3. Remove remaining pieces -1-
of top half of roof frame.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing upper front roof frame
- Drill through spotwelds using a spotweld drill

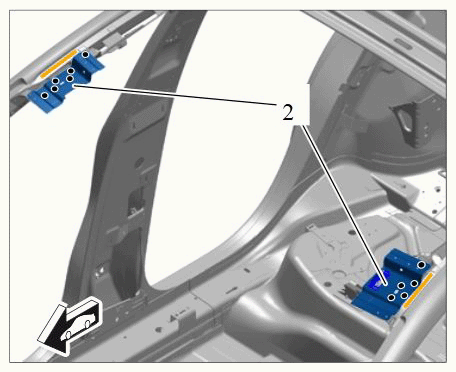

- 3.1. Remove remaining pieces of bottom half of roof frame -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing upper front roof frame
