Removing Roof Pillar
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

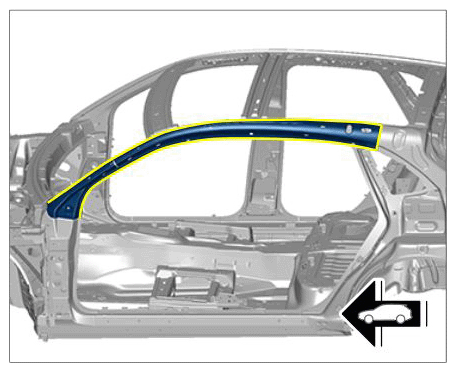

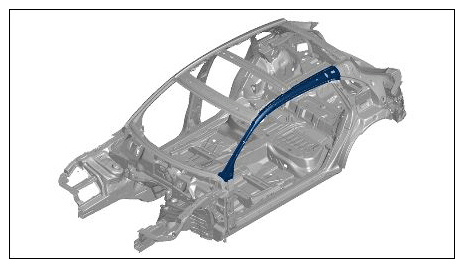

Installation position of roof pillar
Information:
Drill out the connection point on one side only. Do not damage the plate underneath.
- Drill out spotwelds using spotweld drill
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

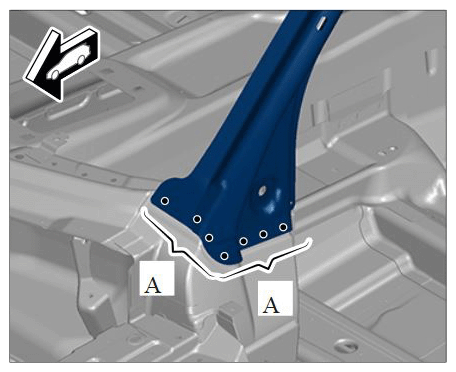

Removing roof pillar
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

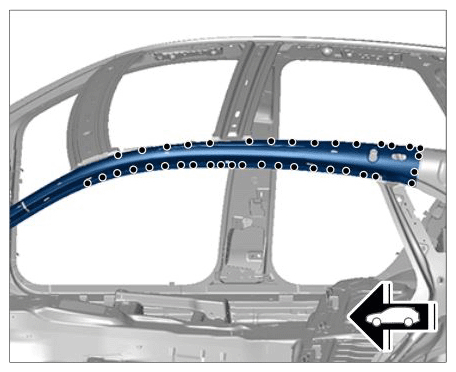

Removing roof pillar
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

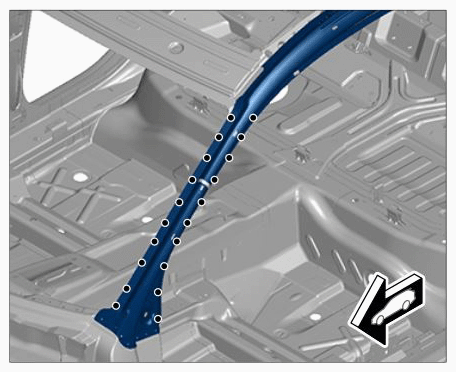

Removing roof pillar
- Heat the marked bonding areas.
- 2.1. Remove roof pillar.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing roof pillar
