Preparing Roof Pillar For Installation
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Fit in the roof pillar.
- Completely drill holes for blind rivet joints in the marked areas -A-
. → Diameter: 6.5 mm
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

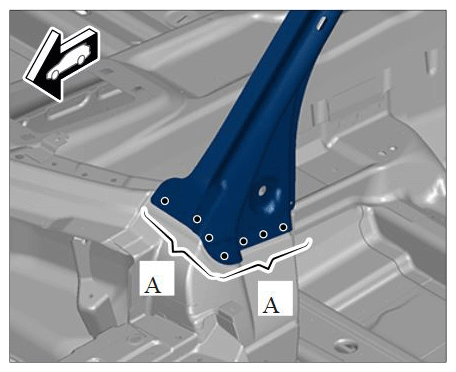

Drilling holes
- Prepare the marked connection areas for bonding and welding.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

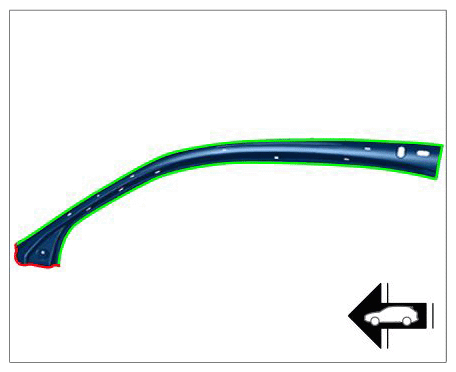

Preparing roof pillar
| Green |
Resistance spot-welding + bonding |
| Red |
Bonding + blind rivets |
