Installing Roof Pillar

Information:

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive  .
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed  .
• Do not begin bonding work until all materials and tools necessary for later repair work are available  .

1. Install roof pillar and check that it fits perfectly. Check gap dimensions. WM 6X00IN GAP DIMENSIONS .

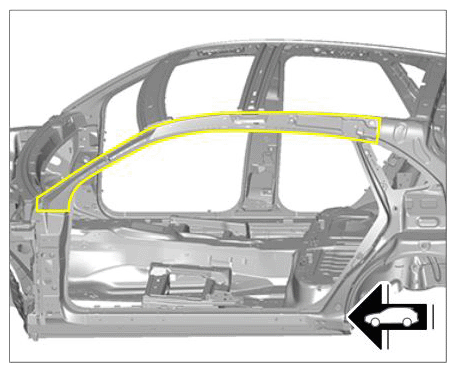

   1. 1.1. Apply adhesive to the areas marked in yellow. Refer to WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE 000.043.206.30 or WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00 .→ Application depth: 3.0 mm

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Applying adhesive

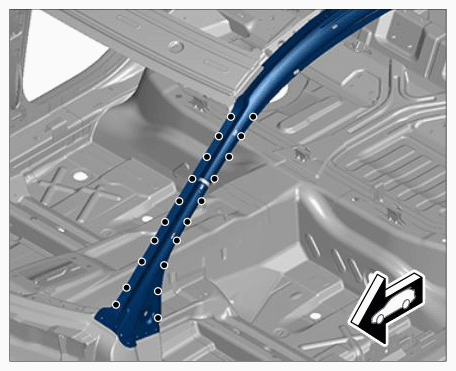

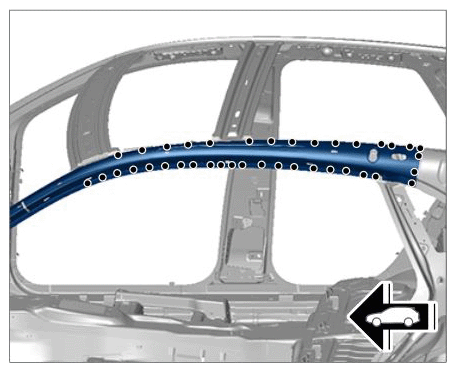

2. Resistance spot-weld the roof pillar.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing roof pillar

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing roof pillar

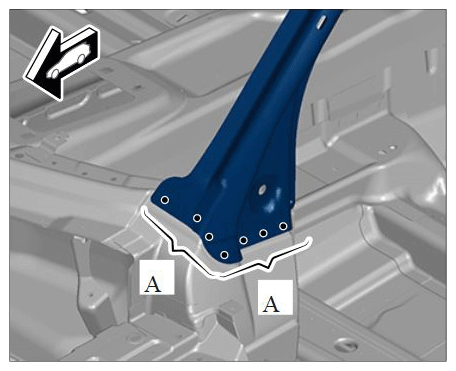

3. Rivet in the roof pillar in area -A-.  → BLIND RIVET 999.190.227.01

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing roof pillar
