Removing Roof Pillar

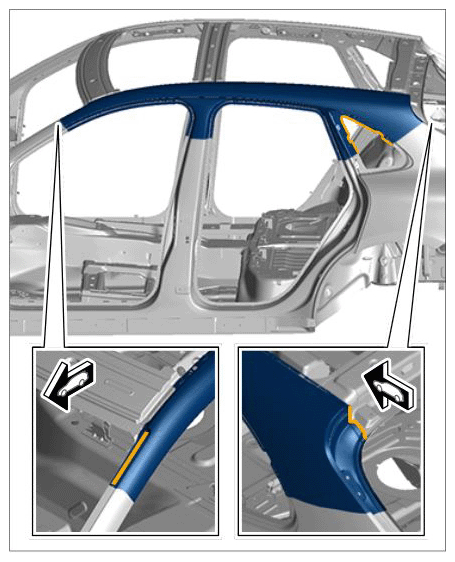

Fig 1: Roof Pillar Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

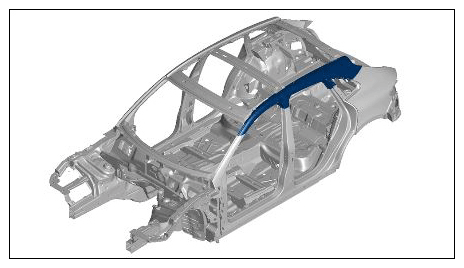

Installation position of roof pillar

Information:  Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

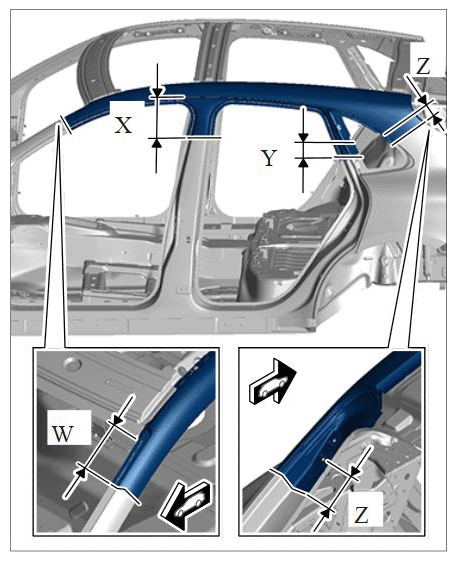

Information:  Mark cuts W, X, Y, Z  in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

1. Mark and make cuts. → Distance: 70 mm → Distance: 120 mm → Distance: 90 mm → Distance: 50 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing roof pillar

   Information:  Drill out the connection point on one side only. Do not damage the plate underneath.

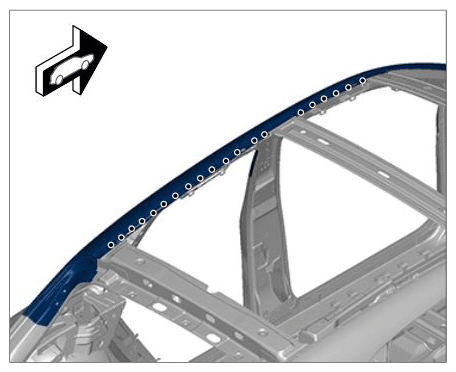

2. Drill out spotwelds using spotweld drill

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing roof pillar

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing roof pillar

3. Heat the marked bonding areas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing roof pillar

   Information:  The front and centre roof cross members overlap the roof pillar. Make a sufficient gap between the components before removing the roof pillar.

4. Make a sufficient gap with respect to the roof pillar in area -A-  on the front and centre roof cross members.
   1. 4.1. Remove roof pillar.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing roof pillar
