Preparing Roof Pillar For Installation

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Fit in rear side section.

1.1. Cut rear side section at the transitions to the body leaving an overlap of 30 mm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

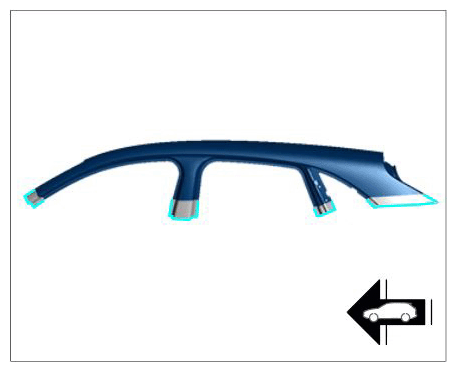

Preparing roof pillar

Fit in roof pillar again.
1. 2.1. Make cuts through the roof pillar and body in the overlap areas.
Prepare connection areas for bonding and welding.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

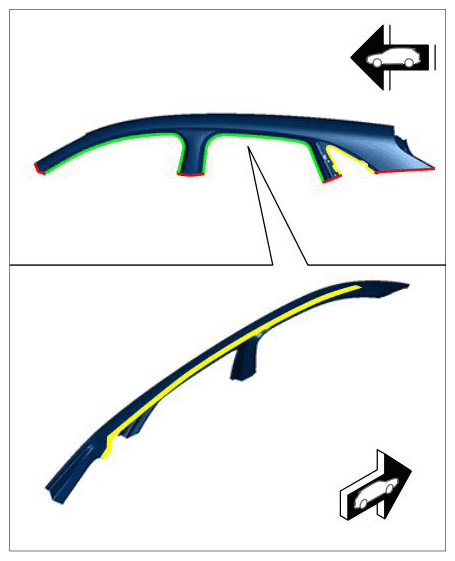

Preparing roof pillar

Red	Plug-welding/apply a full weld using inert gas without bonding
Green	Resistance spot-welding
Yellow	Bonding + resistance spot-welding
