Installing Roof Pillar

Information:

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive  .
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed  .
• Do not begin bonding work until all materials and tools necessary for later repair work are available  .

1. Install roof pillar and check that it fits perfectly. Check gap dimensions. Refer to WM 6X00IN GAP DIMENSIONS .

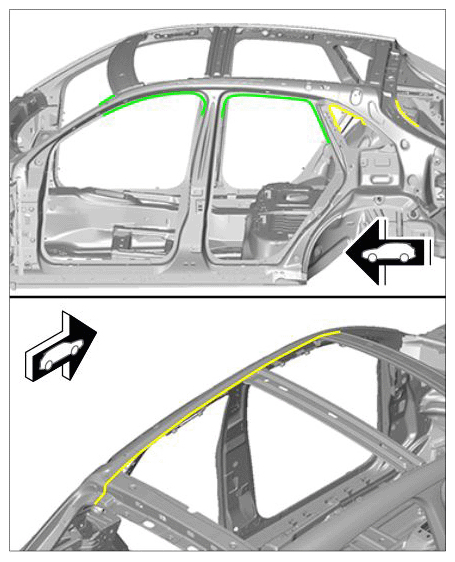

   1. 1.1. Apply adhesive to the areas marked in yellow. Refer to WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE 000.043.206.30 or WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00 . → Application depth: 3.0 mm

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Applying adhesive

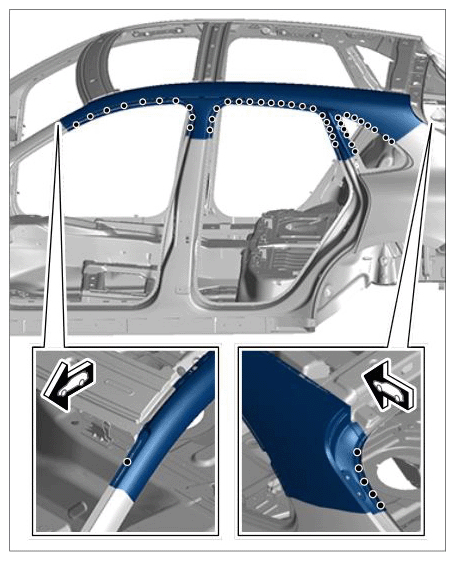

2. Resistance spot-weld the roof pillar.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

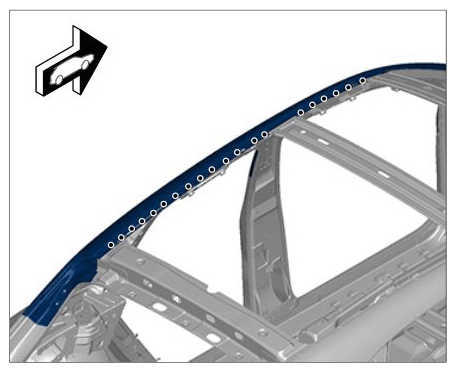

   Installing roof pillar

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing roof pillar

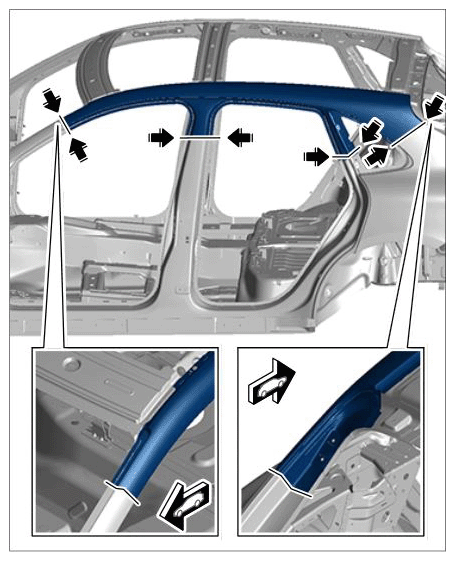

3. Apply a full weld to the area -arrows-  using inert gas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing roof pillar
