Preparing Roof For Installation
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

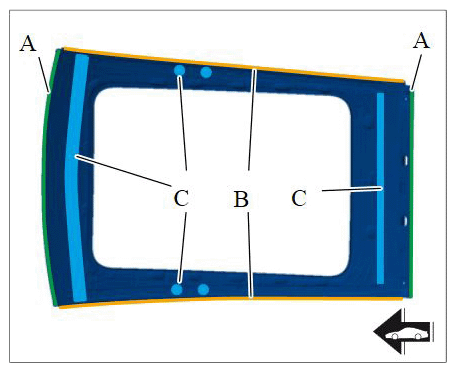

- Prepare connection flanges in areas -A-
for bonding and welding.
Preparing roof
- Prepare bonding surfaces for applying structural adhesive -B- . Refer to WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE 000.043.206.30 or WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00 ..
- Clean bonding areas of support adhesive -C- from inside using acetone.
