Preparing Connection Areas Of Body For Installing Roof
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information:
Do not apply zinc powder paint to the bonding areas.
- Clean welding and bonding areas.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

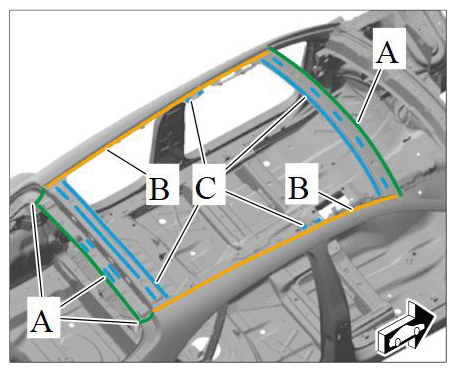

Preparing connection areas of body
- 1.1. Prepare connection flanges in areas -A-
for resistance spot-welding and bonding.
- 1.2. Prepare connection flanges in areas -B-
for bonding.
- 1.3. Prepare bonding areas of support adhesive -C-
for bonding with window adhesive.
