Installing Roof

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

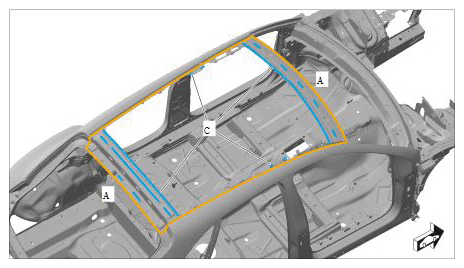

Apply structural adhesive and support adhesive (window adhesive).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Applying adhesive
1. 1.1. Evenly apply structural adhesive to the marked areas -A-.
  Working with body structural adhesive. Refer to WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE 000.043.206.30 or WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00 ..

  Structural adhesive
2. 1.2. Apply support adhesive (window adhesive) to the marked areas -C-.
  Support adhesive

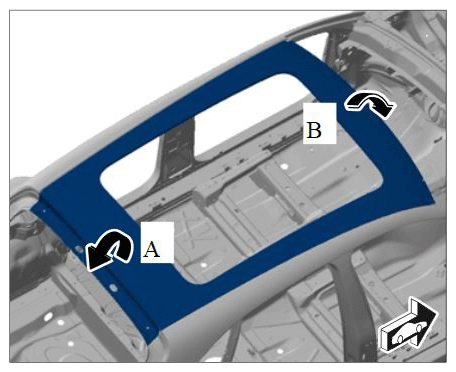

Place roof on rear roof frame with the help of two people -arrow A- and swivel it in towards the front -arrow B-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing roof

Information: Have this work carried out by an assistant whilst at the same time starting with the welding work

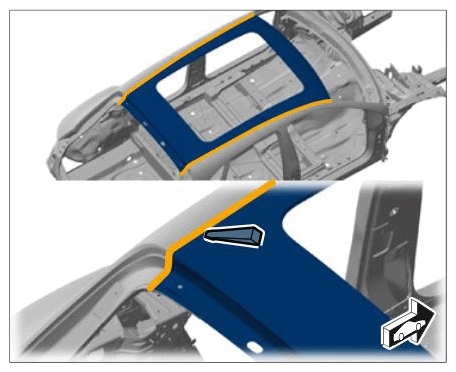

Clean surface of roof in the side panel area.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cleaning roof

3.1. Remove most of the excess adhesive material with a plastic spatula or cloth.

3.2. Finish cleaning visible surfaces with a cloth soaked in cleaning solution.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cleaning roof

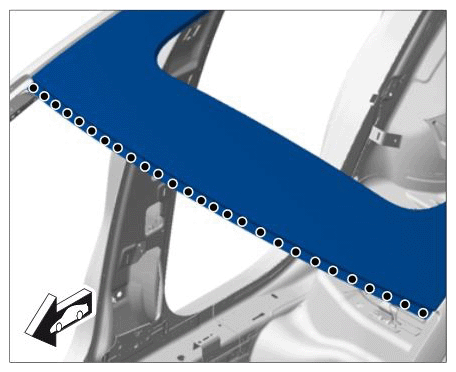

Resistance spot-weld the front of the roof.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing roof

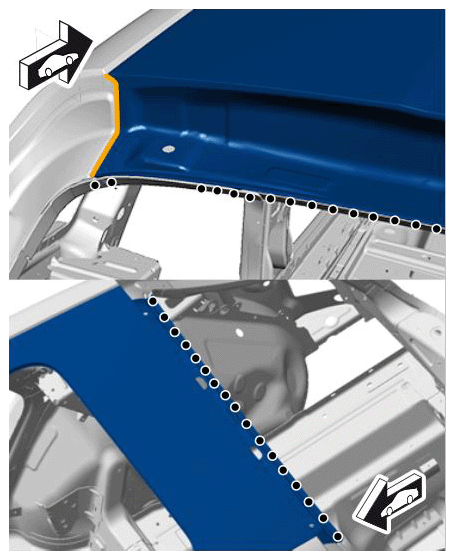

Resistance spot-weld the rear of the roof.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing roof
