Removing Rear Wheel Housing

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information: Drill out the connection point on one side only. Do not damage the plate underneath.

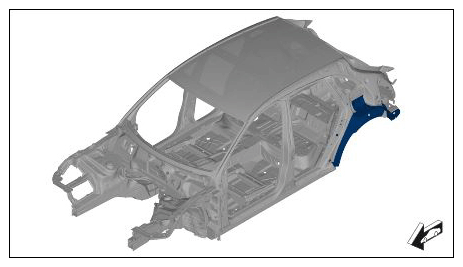

Fig 1: Rear Wheel Housing Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of rear wheel housing

Information: Make sure to leave an overlap of approx 20 mm on the wheel housing.

Information: Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Mark and make the required cut Distance: 20 mm
1. 1.1. Remove rear wheel housing.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

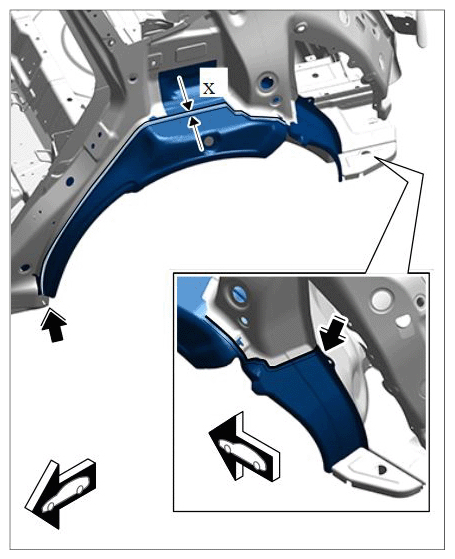

Removing rear wheel housing
Remove remaining pieces of rear wheel housing.
1. 2.1. Drill out spotwelds using spotweld drill .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

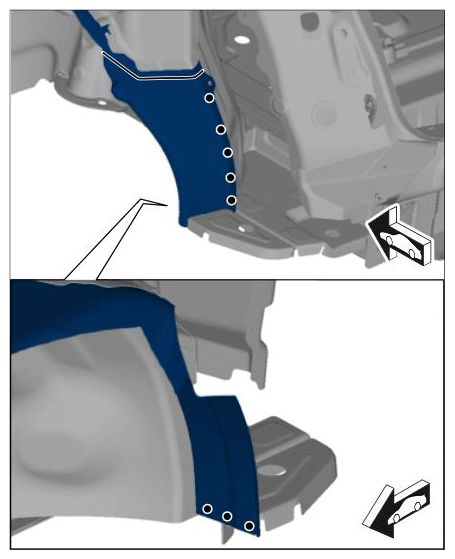

Removing remaining pieces
