Preparing Rear Wheel Housing For Installation
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

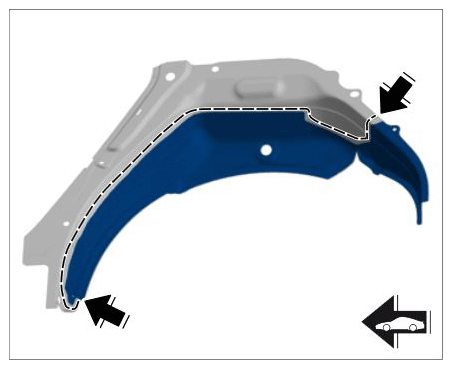

- Fit in rear wheel housing.
- 1.1. Cut rear wheel housing at the transitions to the remaining section of the wheel housing leaving an overlap of 20 mm.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Preparing rear wheel housing

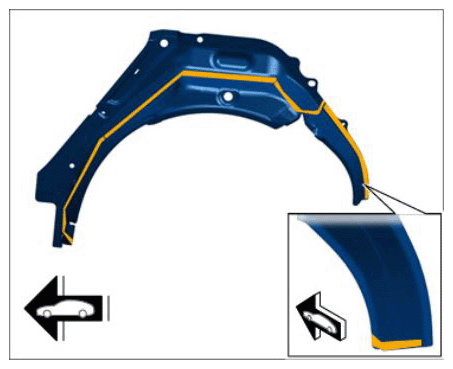

- Prepare rear wheel housing for bonding and welding.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Preparing rear wheel housing
| Orange |
Resistance spot-welding + bonding |
