Removing Inner Side Section
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

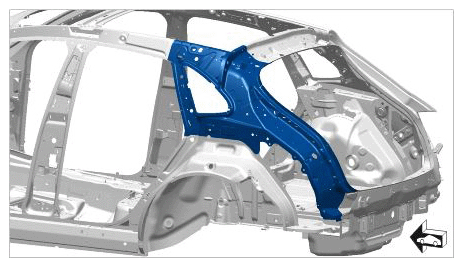

Installation position of inner side section
Information:
Drill out the connection point on one side only. Do not damage the plate underneath.
- Drill out spotwelds using spotweld drill
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

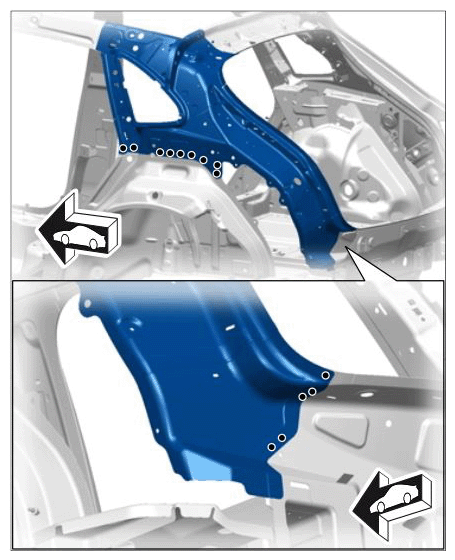

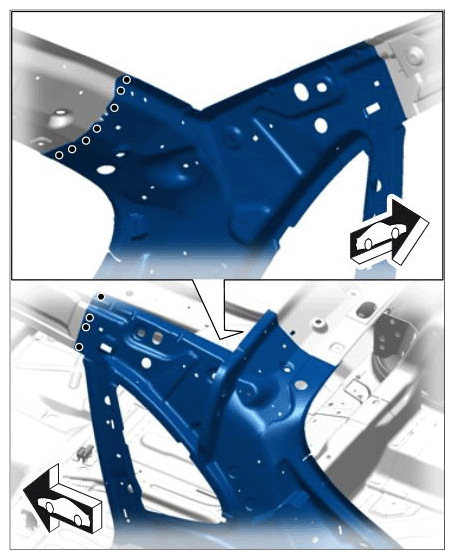

Removing inner side section
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

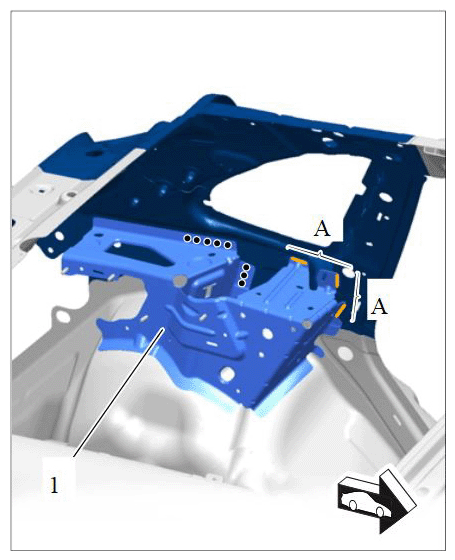

Removing inner side section
- Grind down welded seams in area -A
-.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

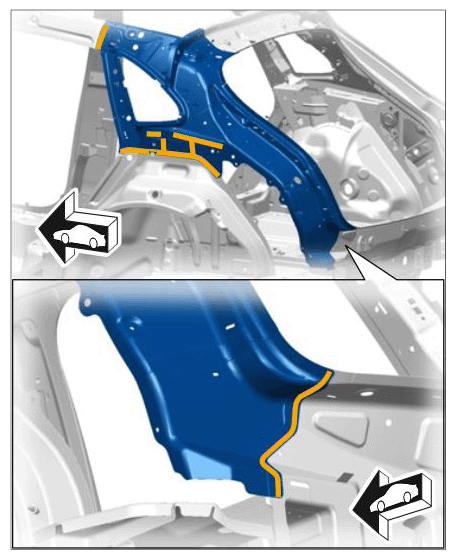

Removing inner side section
- Heat the bonding surfaces.
- 3.1. Remove inner side section.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing inner side section
