Removing D-Pillar Reinforcement

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

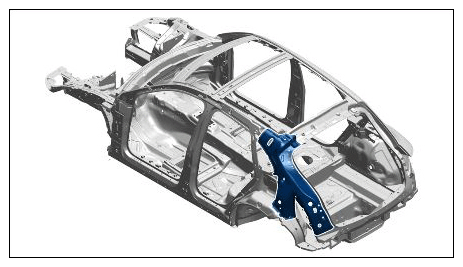

Fig 1: D-Pillar Reinforcement Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

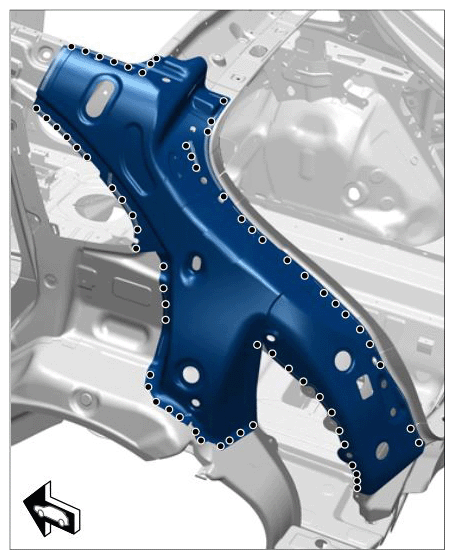

Installation position of D-pillar reinforcement

Information: Drill out the connection point on one side only. Do not damage the plate underneath.

Drill out spotwelds using spotweld drill .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

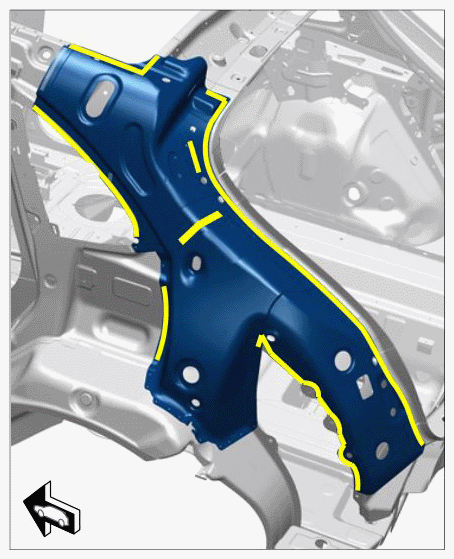

Removing D-pillar reinforcement
Heat the bonding surfaces.
1. 2.1. Remove D-pillar reinforcement.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing D-pillar reinforcement
