Preparing Connection Areas Of The Body: Notes
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Align the sealing surface and connections of the body.
- De-burr connection points and prepare them for welding.
Information:
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive .
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed .
- Do not begin bonding work until all materials and tools necessary for later repair work are available .
- Prepare the marked areas for welding and bonding. Refer to WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE 000.043.206.30
, WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
.

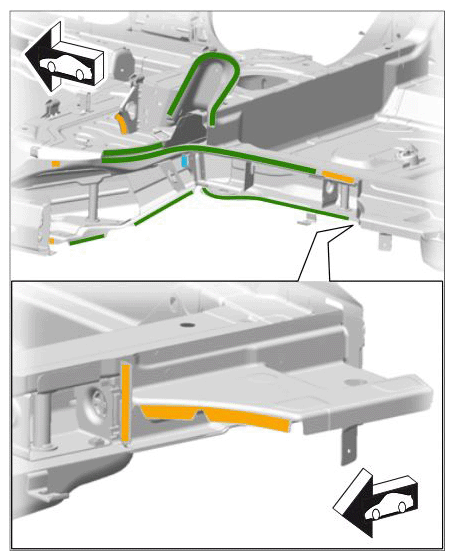

Preparing connection areas of the body
Green Resistance spot-welding + bonding Blue Bonding Orange Resistance spot-welding
