Preparing (Inner) Rear Wheel Housing For Installation: Notes

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Prepare (inner) rear wheel housing for bonding and welding.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

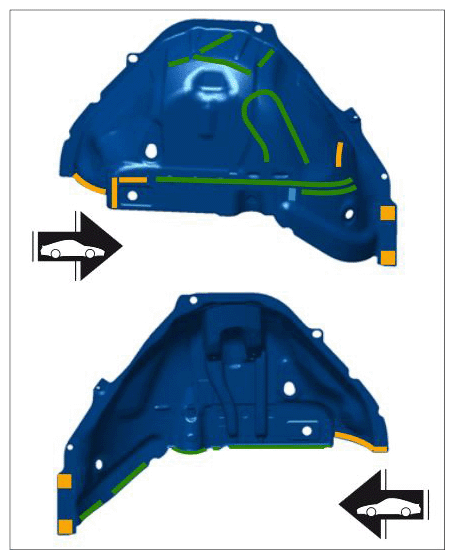

Preparing (inner) rear wheel housing

Prepare seat belt bracket for bonding and welding.

2.1. Drill holes for plug-welding in the marked areas A - using a drill bit with a diameter of Diameter: 8.0 mm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

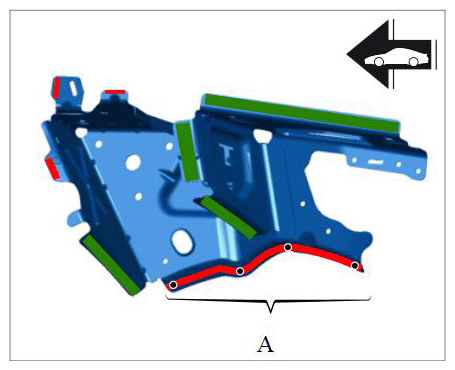

Preparing seat belt bracket

Green	Resistance spot-welding + bonding
Blue	Bonding
Red	Plug-welding/apply a full weld using inert gas without bonding
Orange	Resistance spot-welding
