Installing (Inner) Rear Wheel Housing: Notes

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information:

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive .
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed .
Do not begin bonding work until all materials and tools necessary for later repair work are available .

Install (inner) rear wheel housing and check that it fits perfectly. Check gap dimensions. Refer to WM 6X00IN GAP DIMENSIONS .
1. 1.1. Apply adhesive to the areas marked in yellow. Refer to WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE 000.043.206.30 , WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00 . Application depth: 3.0 mm .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Applying adhesive

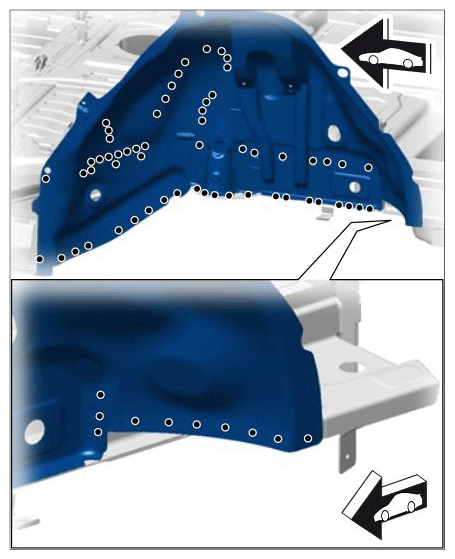

Resistance spot-weld the (inner) rear wheel housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing (inner) rear wheel housing
