Removing Rear Side Member

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

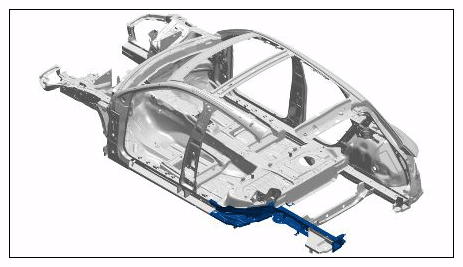

Fig 1: Rear Side Member Component Location s

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of rear side member

Information: Drill out the connection point on one side only. Do not damage the plate underneath.

Drill out spotwelds using spotweld drill .
1. 1.1. Remove cross member for spare wheel.

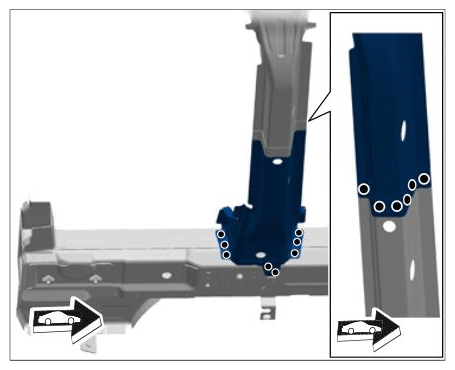

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing cross member for spare wheel

Information: Drill out the connection point on one side only. Do not damage the plate underneath.
Drill out spotwelds using spotweld drill .

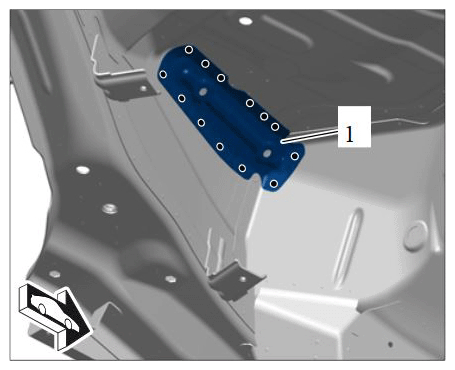

1. 2.1. Remove rear side member reinforcement -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear side member reinforcement

Information: Drill out the connection point on one side only. Do not damage the plate underneath.
Drill out spotwelds using spotweld drill .

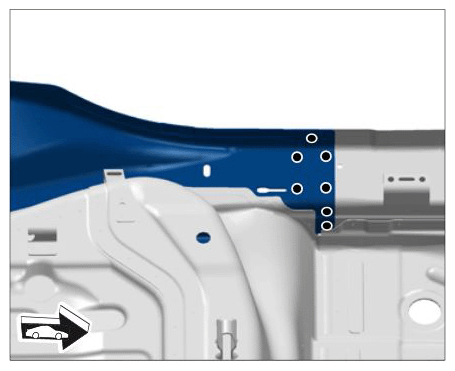

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear side member

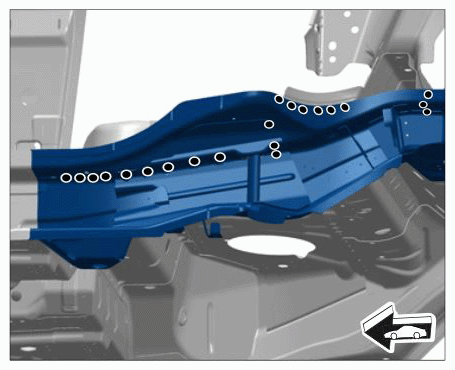

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear side member

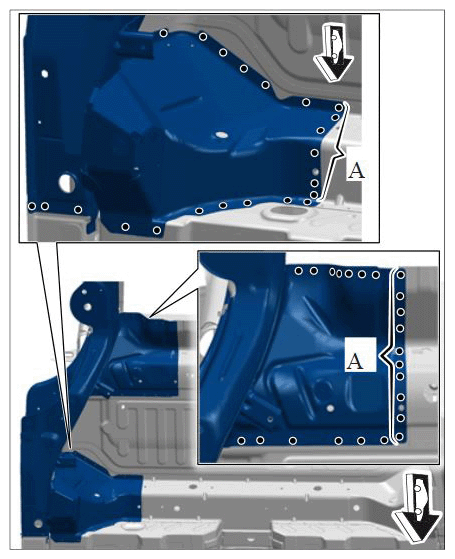

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear side member

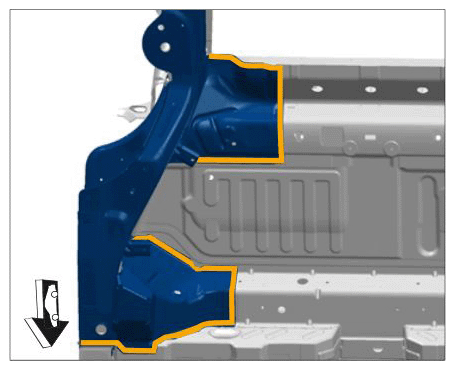

Heat the marked bonding areas.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear side member

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear side member
Remove rear side member.
