Preparing Rear Side Member For Installation

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Fit in rear side member.
Prepare rear side member for bonding and blind rivets.
1. 2.1. Prepare for bonding in the area shown and drill out the holes for a blind rivet joint fully. Diameter: 6.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

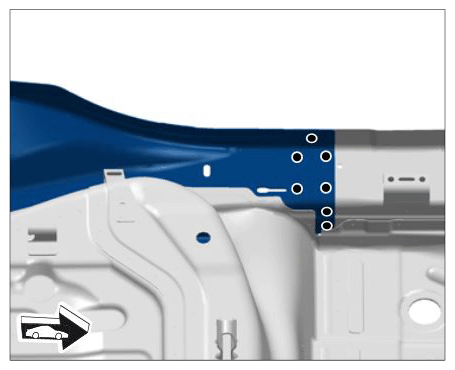

Drilling holes for blind rivet joints

Prepare rear side member for bonding and welding.

3.1. Drill holes for plug welding in the marked areas -A- on the rear side member. → Diameter: 8.0 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

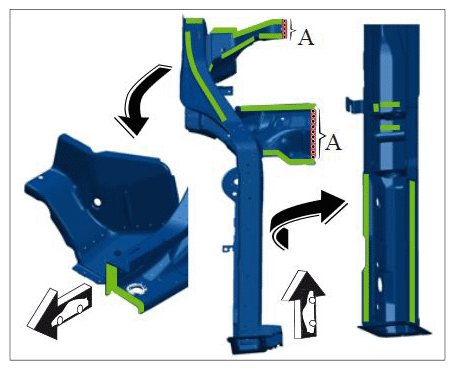

Preparing rear side member

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

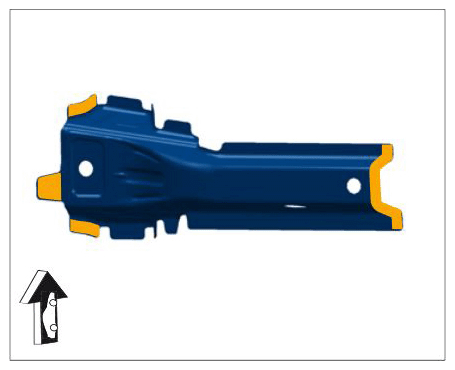

Preparing cross member for spare wheel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

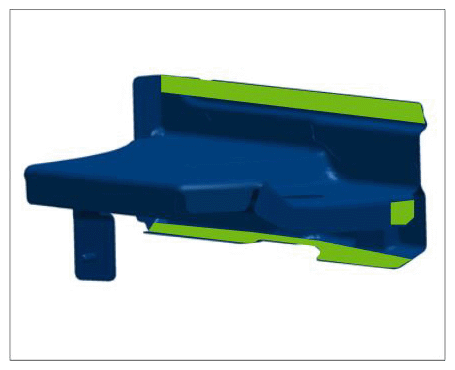

Preparing rear side member reinforcement

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

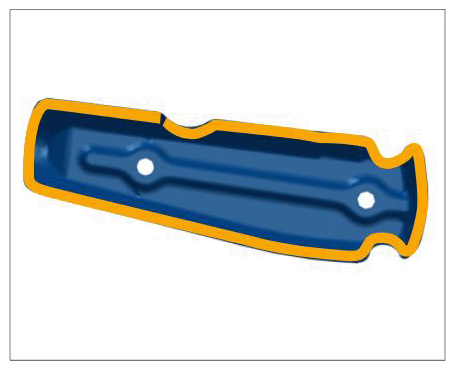

Preparing corner plate

Green	Resistance spot-welding + bonding
Red	Plug-welding/apply a full weld using inert gas without bonding
Orange	Resistance spot-welding
