Removing Rear Side Member (Section)

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

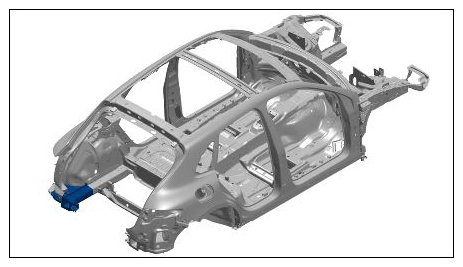

Fig 1: Rear Side Member Component Location (Section)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

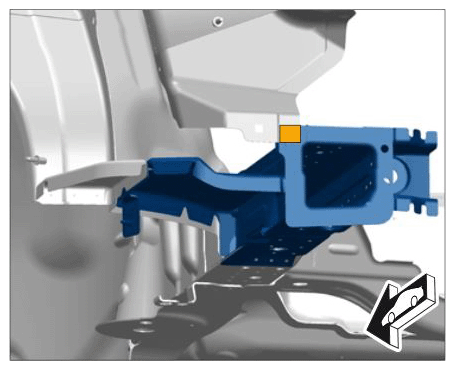

Installation position of rear side member (section)

Information: Cut completely through the rear side member (section) in the marked area.

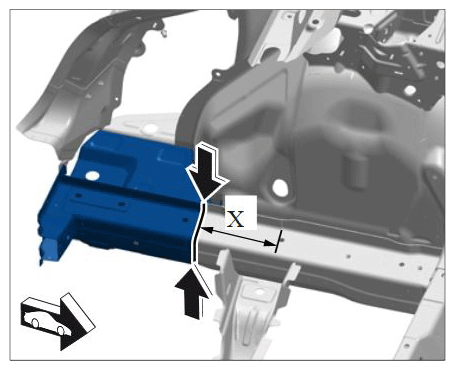

Information: Mark cut X in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

Mark and make cut. Distance: 180 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear side member (section)

Information: Drill out the connection point on one side only. Do not damage the plate underneath.

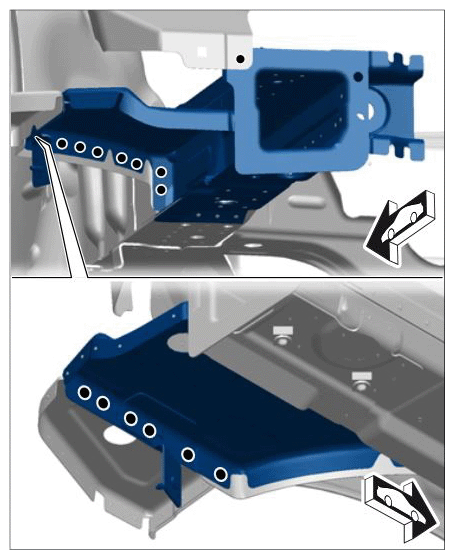

Drill out spotwelds using spotweld drill .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear side member (section)
Heat the marked bonding surfaces.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear side member (section)
Remove rear side member (section).
