Preparing Rear Side Member (Section) For Installation

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Fit in rear side member.

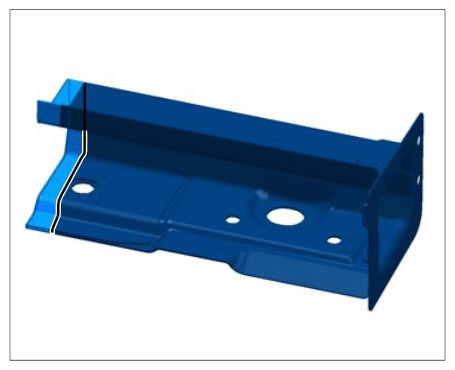

1. 1.1. Cut rear side member at the transitions to the body leaving an overlap of 30 mm.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing rear side member (section)
Fit in rear side member again.

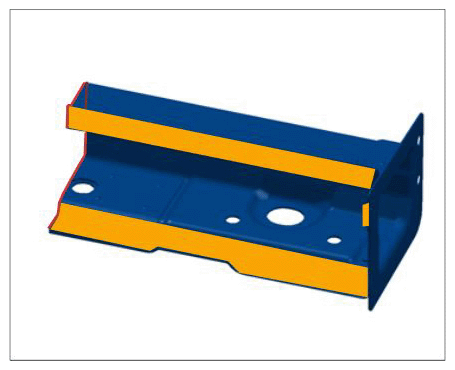

1. 2.1. Make cuts through the rear side member (section) and rear side member in the overlap areas.
Prepare connection areas for bonding and welding.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing rear side member (section)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing corner plate

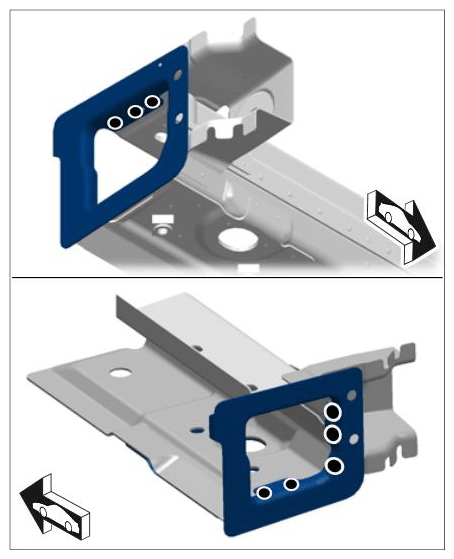

Resistance spot-weld the closing element.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing closing element

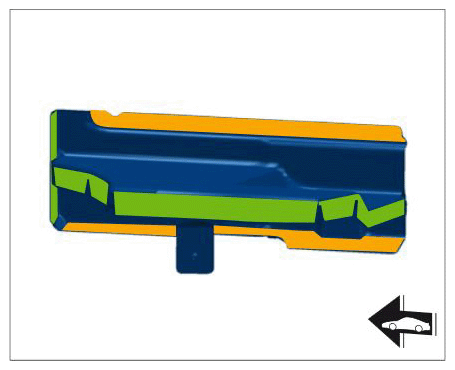

Red	Plug-welding/apply a full weld using inert gas without bonding
Green	Resistance spot-welding
Yellow	Bonding + resistance spot-welding
