Preparing Connection Areas Of The Body
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information:
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive .
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed .
- Do not begin bonding work until all materials and tools necessary for later repair work are available .
- Align the sealing surface and connections of the body.
- De-burr connection points and prepare them for welding.
- Prepare the marked areas for bonding and welding. Refer to WM 5X00IN SEAM SEALS
.

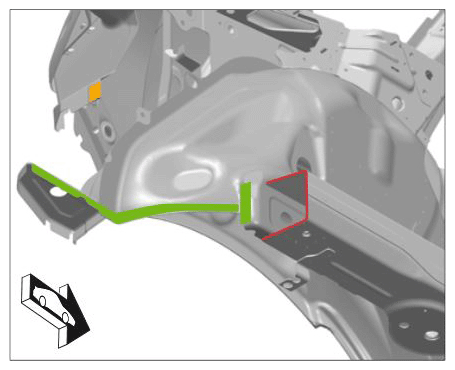

Preparing connection areas of the body
Red Plug-welding/apply a full weld using inert gas without bonding Green Resistance spot-welding Yellow Bonding + resistance spot-welding
