Removing C-Pillar Reinforcement

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

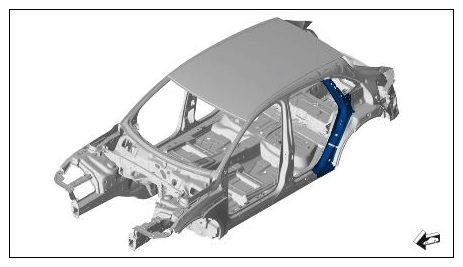

Fig 1: C-Pillar Reinforcement Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of C-pillar reinforcement

Remove C-pillar reinforcement.
Information: Drill out the connection point on one side only. Do not damage the plate underneath.

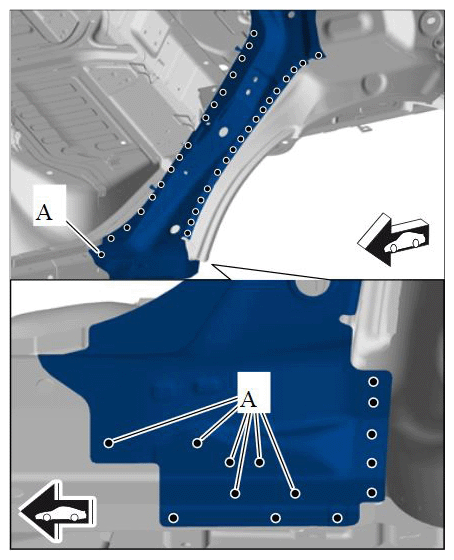

1. 1.1. Drill out spotwelds using spotweld drill .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing C-pillar reinforcement
Remove side panel section -1- .
Information: Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

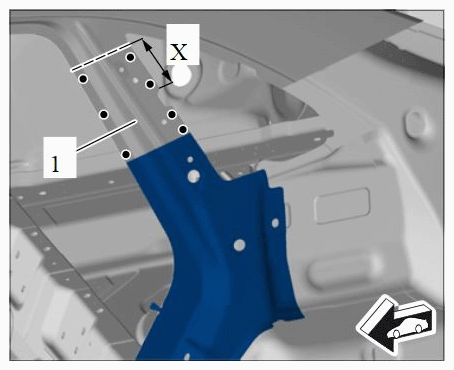

1. 2.1. Mark and make cuts. Distance: 100 mm
  Information

  Drill out the connection point on one side only. Do not damage the plate underneath.
2. 2.2. Drill out spotwelds using spotweld drill .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing side panel section

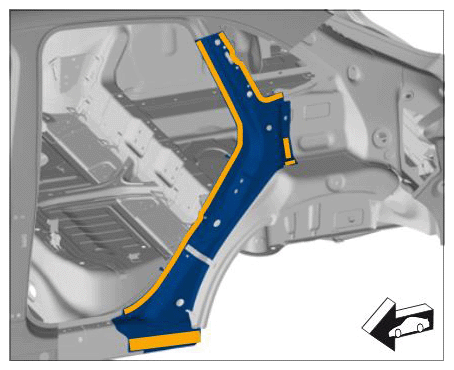

Heat bonding areas.

3.1. Remove side panel -1- section.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing side panel section

Information: Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Information: Mark cut Y in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

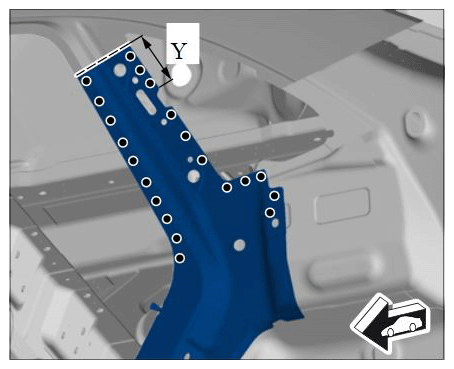

Mark and make cuts. Distance: 90 mm
Information: Drill out the connection point on one side only. Do not damage the plate underneath.
1. 4.1. Drill out spotwelds using spotweld drill .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing C-pillar reinforcement

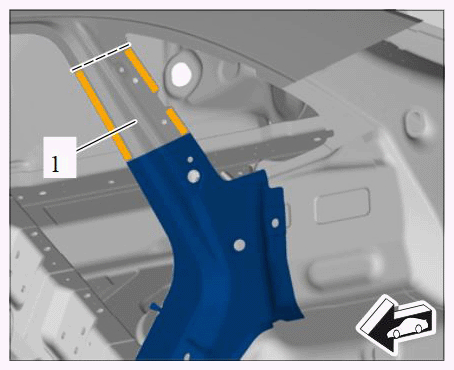

Heat bonding areas.
1. 5.1. Remove C-pillar reinforcement.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing C-pillar reinforcement
