Installing C-Pillar Reinforcement

Information:

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive  .
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed  .
• Do not begin bonding work until all materials and tools necessary for later repair work are available  .

Information

Adhesive must not be applied to areas to be plug-welded or fully welded using inert gas.

1. Install outer B-pillar and check that it fits perfectly. Check gap dimensions. Refer to WM 6X00IN GAP DIMENSIONS .
   1. 1.1. Apply foam filler to the body in area -1-  . Refer to WM 5X00IN WORKING WITH BODY FOAM FILLER .

      Make sure that all openings and gaps between the body and C-pillar reinforcement are closed off with the sealing compound.

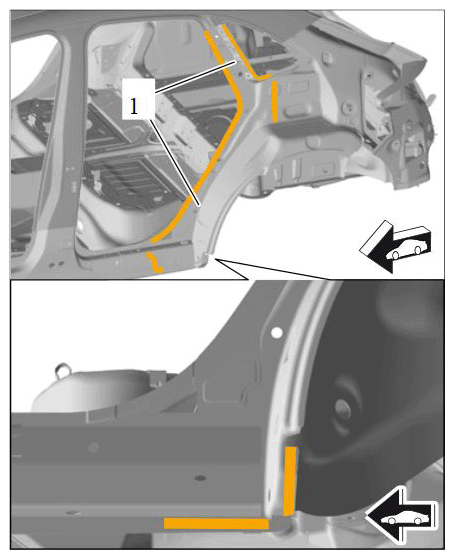

   2. 1.2. Apply adhesive to the areas marked in yellow. Refer to WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE 000.043.206.30 , WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00 .. Application depth: 3.0 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Applying adhesive

2. Resistance spot-weld the C-pillar reinforcement.

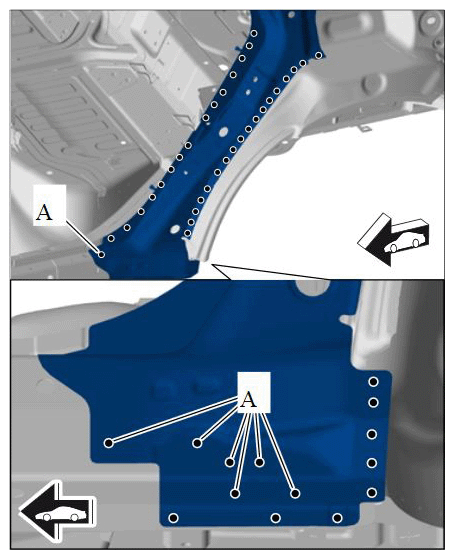

   1. 2.1. Plug-weld area -A-  using inert gas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing C-pillar reinforcement

3. Resistance spot-weld the C-pillar reinforcement.

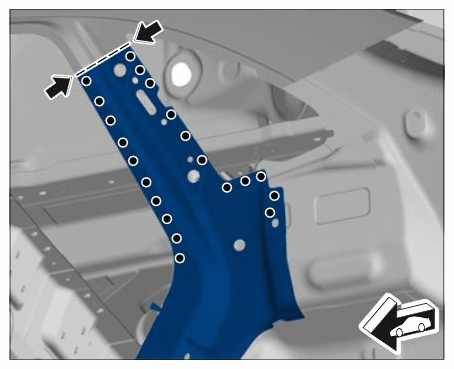

   1. 3.1. Plug-weld area -arrows-  using inert gas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing C-pillar reinforcement
