Removing Rear-End Well

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

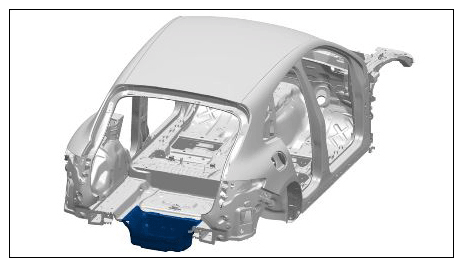

Fig 1: Trunk Well Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

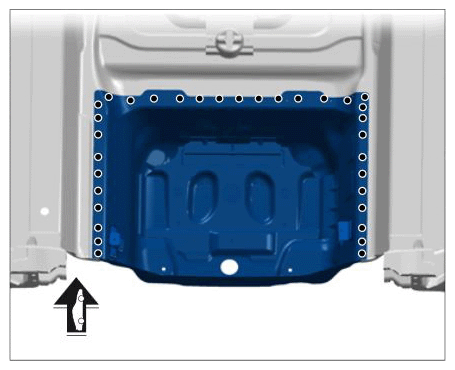

Installation position of rear-end well

Information: Drill out the connection point on one side only. Do not damage the plate underneath.

Drill out spotwelds using spotweld drill .
1. 1.1. Remove rear-end well.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear-end well
