Installing Rear-End Well

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information:

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive .
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed .
Do not begin bonding work until all materials and tools necessary for later repair work are available .

Install rear-end well and check that it fits perfectly. Check gap dimensions. Refer to WM 6X00IN GAP DIMENSIONS .
Resistance spot-weld the rear-end well.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

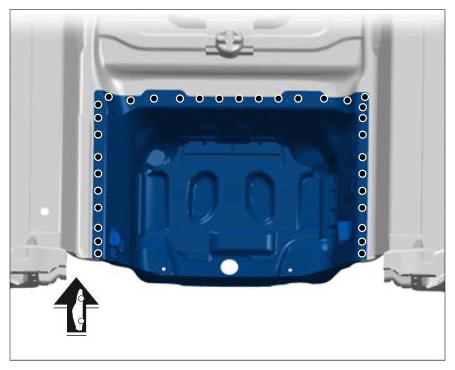

Installing rear-end well
