Removing Rear Closing Panel

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

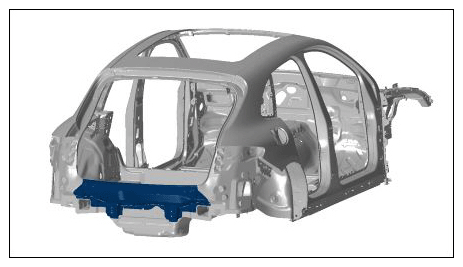

Fig 1: Rear Closing Panel Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of rear closing panel

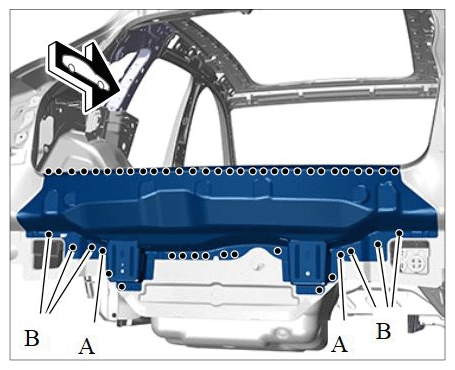

Information: Drill out the connection point on one side only. Do not damage the plate underneath.

Drill out spotwelds using spotweld drill .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

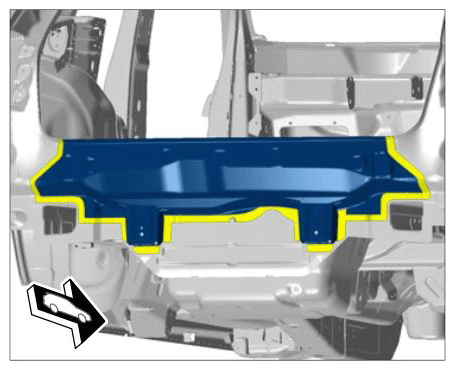

Removing rear closing panel
Heat the marked bonding surfaces.
1. 2.1. Removing rear closing panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear closing panel
