Removing Inner Rear Closing Panel

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

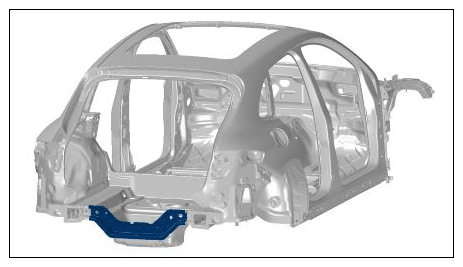

Fig 1: Inner Rear Closing Panel Component Location
G11983008Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of inner rear closing panel

Information:  Drill out the connection point on one side only. Do not damage the plate underneath.

  1. Drill out spotwelds using spotweld drill  .

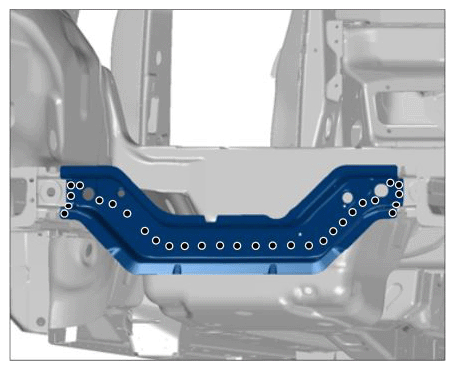

    G11983009Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing inner rear closing panel

  2. Heat the marked bonding surfaces.
    1. 2.1. Remove inner rear closing panel.

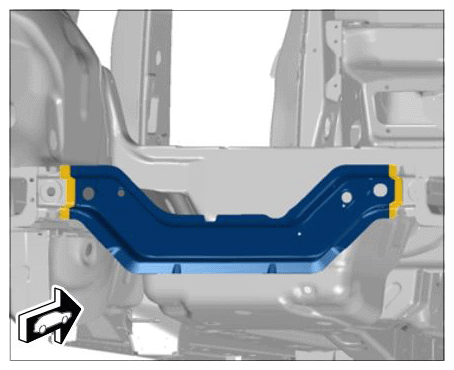

    G11983010Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing inner rear closing panel
