Installing Inner Rear Closing Panel

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information:

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive .
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed .
Do not begin bonding work until all materials and tools necessary for later repair work are available .

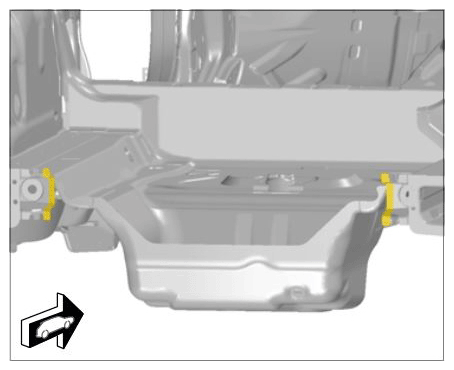

Apply adhesive to the marked area. Application depth: 3.0 mm
Working with body structural adhesive; Refer to Refer to WM 5X00IN WORKING WITH BODY STRUCTURAL FOAM (2010 - 14) , WM 5X00IN WORKING WITH BODY STRUCTURAL FOAM (2014 -) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Applying adhesive

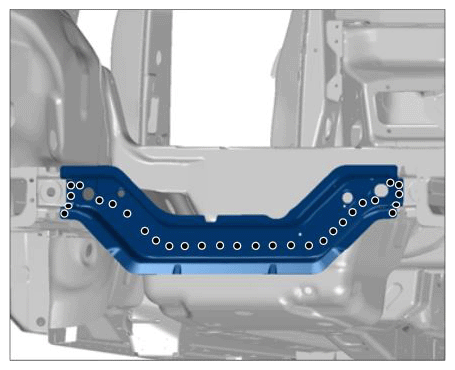

Resistance spot-weld the inner rear closing panel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing inner rear closing panel
