Removing Cowl Panel Cover

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

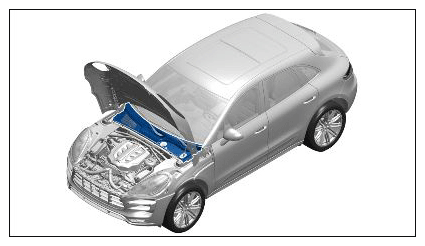

Fig 1: Cowl Panel Cover Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of cowl panel cover

Unclip cover -1- for plenum panel by pulling it upwards and remove it by pulling it forward.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

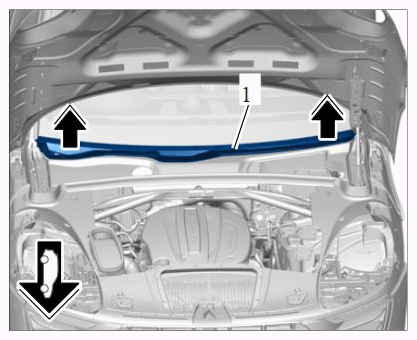

Plenum panel cover
Remove cowl panel cover.
1. 2.1. Remove wiper arm. Refer to 922519 REMOVING AND INSTALLING WIPER ARM .
2. 2.2. Unclip cover -1 - from the windscreen guide and remove it by pulling it upwards.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

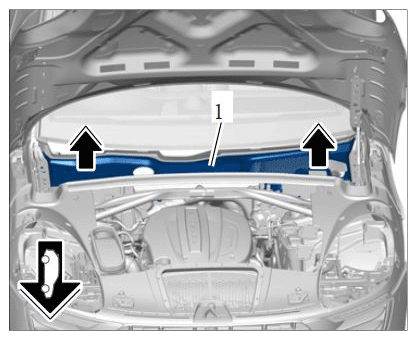

Removing cowl panel cover
