Installing Cowl Panel Cover

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Installation is performed in reverse order to removal.

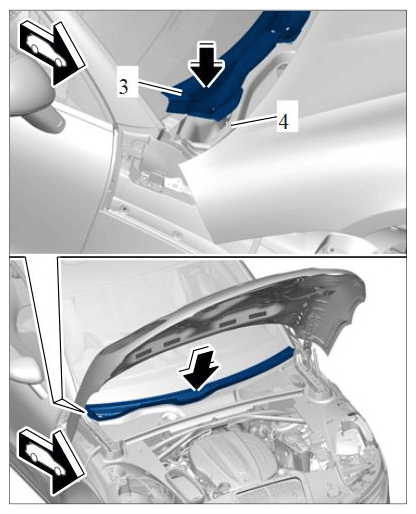

Engage locking lug -3- on the cowl panel cover in the retaining strip on the windscreen -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clipping in cowl panel cover
Clip in cover for plenum panel and check that the rubber profile is seated correctly.

Model year as of 2014, Model year up to 2020
