Removing Front Side Member

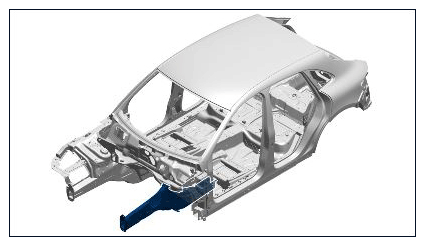

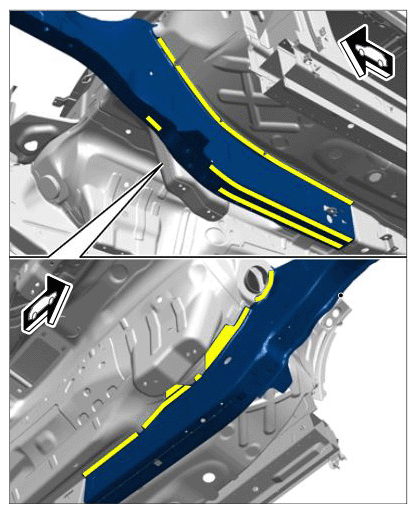

Fig 1: Front Side Member Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of front side member

Information:  Drill out the connection point on one side only. Do not damage the plate underneath.

1. Drill out spotwelds using spotweld drill  .
   1. 1.1. Grind down welded seams -arrows-  .
   2. 1.2. Remove side member closing element.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

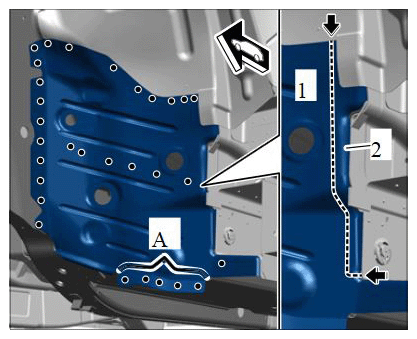

   Removing side member closing element

   Information:  Drill out the connection point on one side only. Do not damage the plate underneath.

2. Drill out spotwelds using spotweld drill  .

   Information:  Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

   1. 2.1. Mark and make cut -arrows-  .
   2. 2.2. Remove extension for front wheel housing -1-  . The remaining part -2-  stays in the vehicle.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

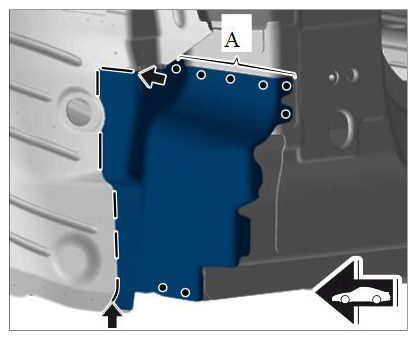

   Removing extension for front wheel housing

   Information

   Drill out the connection point on one side only. Do not damage the plate underneath.

3. Drill out spotwelds using spotweld drill  .
   1. 3.1. Drill out spotwelds -A-  using spotweld drill  by drilling through two plate thicknesses.
   2. 3.2. Drill out spotwelds -B-  through two plate thicknesses using a → Diameter: 6.5 mm  drill bit.
   3. 3.3. Remove mounting.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

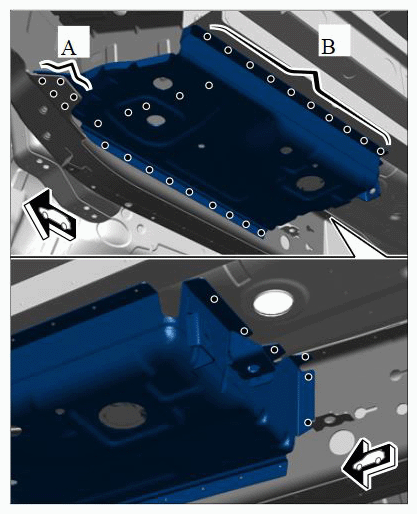

   Removing mounting

   Information:  Drill out the connection point on one side only. Do not damage the plate underneath.

4. Drill out spotwelds using spotweld drill  .
   1. 4.1. Heat the marked bonding areas.
   2. 4.2. Remove reinforcement.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

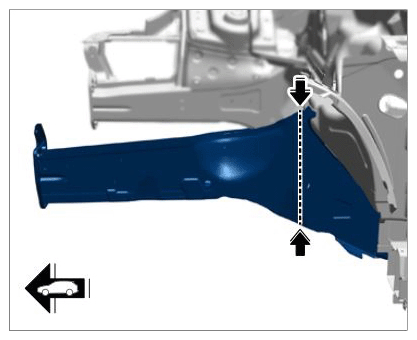

   Removing reinforcement

5. Mark and make a rough cut -arrows-  on the longitudinal member.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

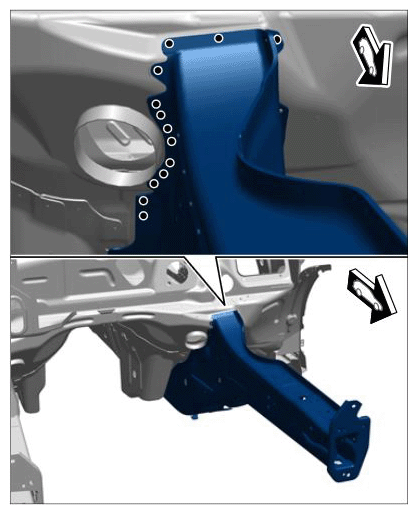

   Removing front side member

   Information:  Drill out the connection point on one side only. Do not damage the plate underneath.

6. Drill out spotwelds using spotweld drill  .
   1. 6.1. Drill out spotwelds -B-  through two plate thicknesses using a → Diameter: 6.5 mm  drill bit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

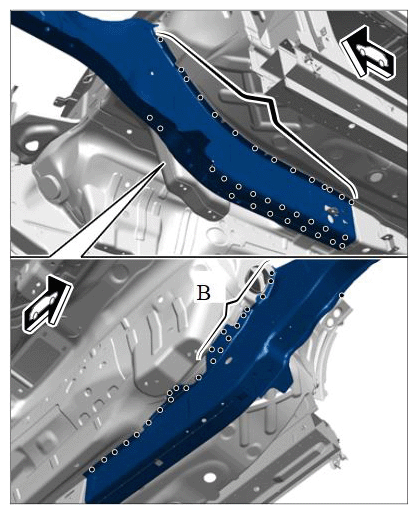

   Removing front side member

7. Drill out spotwelds through two plate thicknesses using a → Diameter: 6.5 mm  drill bit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

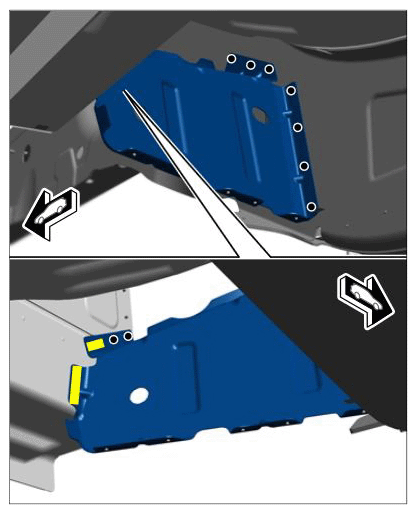

   Removing front side member

8. Heat the marked bonding areas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing front side member

9. Remove front side member.
