Preparing Front Side Member For Installation

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

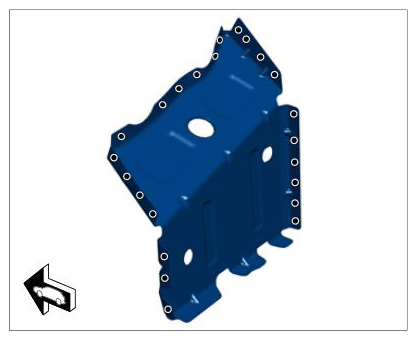

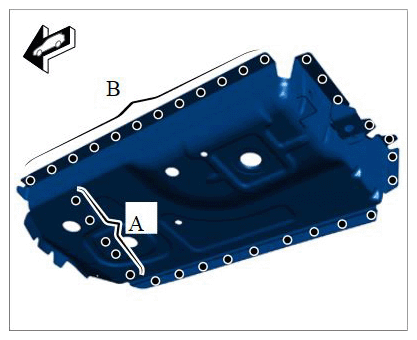

Drill holes for plug welding and blind rivet joints in the marked areas.
Information: Make sure that the bore holes A are flush with the connection areas of the reinforcement for the longitudinal member.

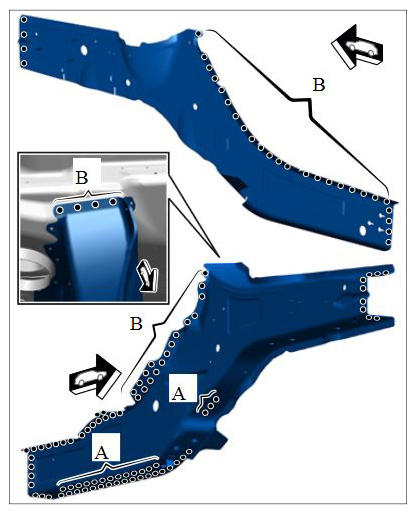

1. 1.1. Drill holes for plug welding in area -A- using a → Diameter: 8.0 mm drill bit.
2. 1.2. Drill holes for blind rivet joints in area -B- using a → Diameter: 6.5 mm drill bit.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

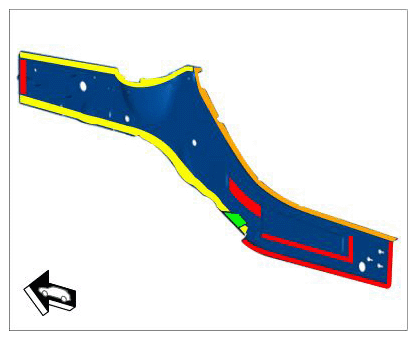

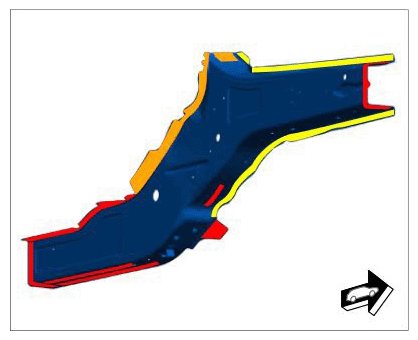

Preparing front side member

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

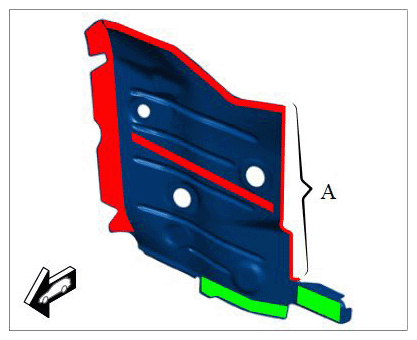

Preparing reinforcement

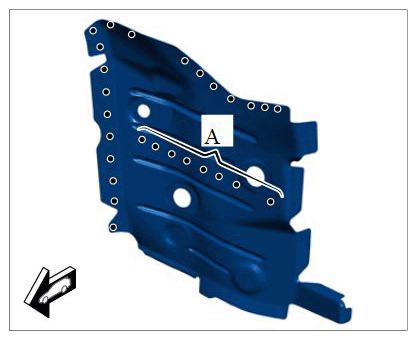

Information: Make sure that the bore holes A are flush with the connection areas of the reinforcement for the longitudinal member.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

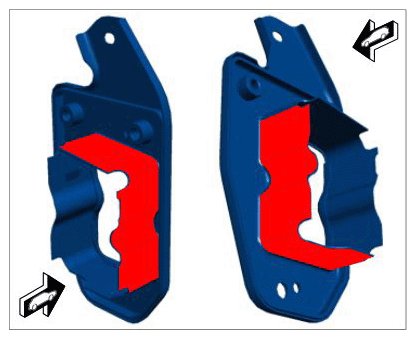

Preparing mounting

Information: Make sure that the bore holes A are flush with the connection areas of the reinforcement for the longitudinal member.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

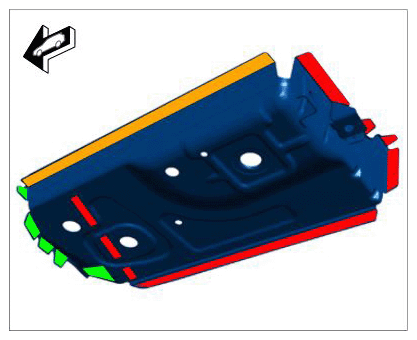

Preparing front wheel arch extension
