Removing Longitudinal Member For Wheel Housing Upper Section

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

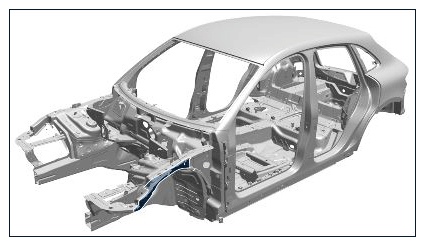

Fig 1: Wheel Housing Upper Side Member Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of longitudinal member for wheel housing upper section

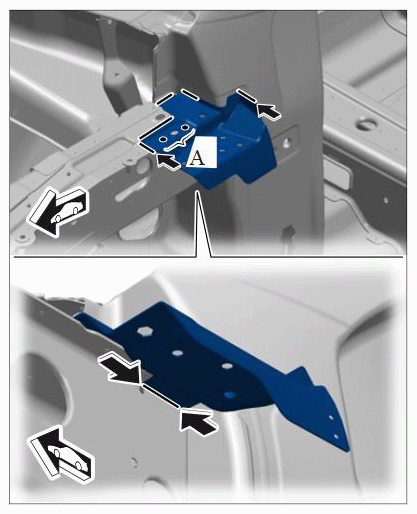

Remove wing bracket.
Information: Drill out the connection point on one side only. Do not damage the plate underneath.
1. 1.1. Drill out spotwelds -A- using spotweld drill .
2. 1.2. Grind down welded seams -arrows- .
Fig 2: Fender Bracket Installation Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing wing bracket

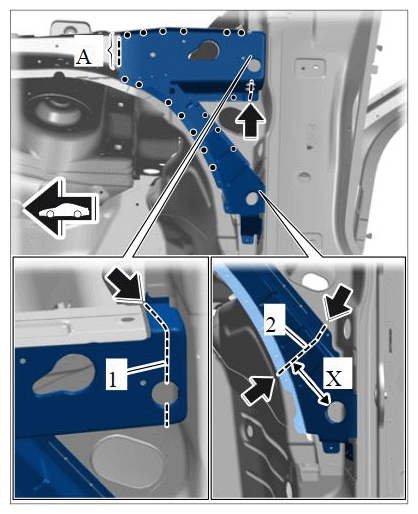

Remove reinforcements.
Information: Drill out the connection point on one side only. Do not damage the plate underneath.
1. 2.1. Drill out spotwelds using spotweld drill .
2. 2.2. Make rough cuts -1- along the A-pillar -arrows- .
  Information

  Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.
3. 2.3. Mark and make cut -2- . → Distance: 80 mm
4. 2.4. Grind down welded seam -A- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing reinforcements

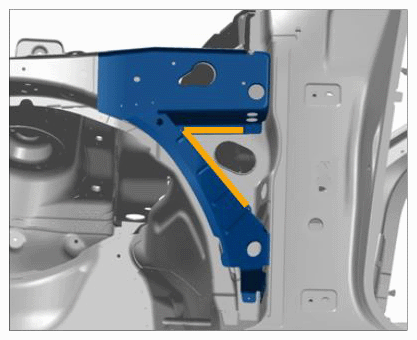

Heat bonding areas.
1. 3.1. Remove reinforcements.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing reinforcements

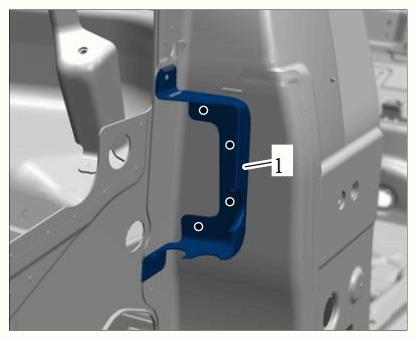

Remove remaining piece of upper reinforcement -1-.
1. 4.1. Drill out spotwelds using spotweld drill .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing remaining piece

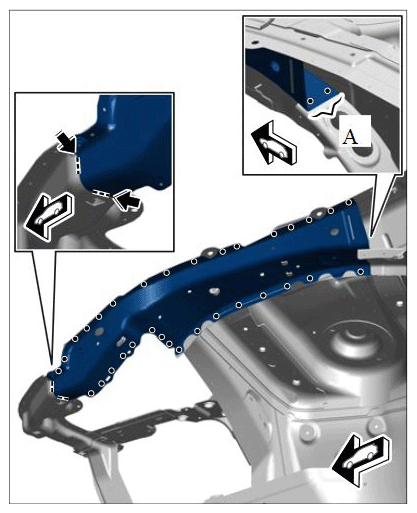

Remove longitudinal member for wheel housing.
1. 5.1. Drill out spotwelds using spotweld drill .
2. 5.2. Grind down welded seams -arrows- .
3. 5.3. Grind down spotwelds -A- from the inside.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing longitudinal member for wheel housing

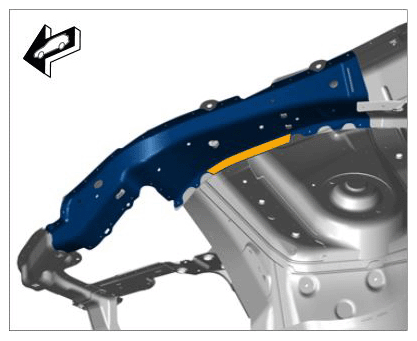

Heat the bonding surfaces.
1. 6.1. Remove longitudinal member for wheel housing.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing longitudinal member for wheel housing
