Installing Longitudinal Member For Wheel Housing

Information:

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive  .
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed  .
• Do not begin bonding work until all materials and tools necessary for later repair work are available  .

1. Install longitudinal member for wheel housing and check that it fits perfectly. Check gap dimensions. Refer to Refer to WM 6X00IN GAP DIMENSIONS .
   1. 1.1. Apply adhesive to the marked areas. Refer to WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE 000.043.206.30 , WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00 .Application depth: 3.0 mm  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

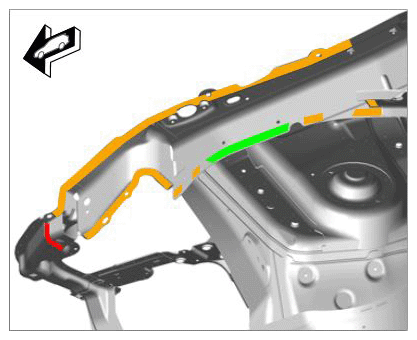

   Preparing connection areas of the body

   Orange	Resistance spot-welding
   Green	Resistance spot-welding + bonding
   Red	Plug-welding/apply a full weld using inert gas without bonding

2. Resistance spot-weld the longitudinal member for the wheel housing.
   1. 2.1. Apply a full weld to the area -arrows-  using inert gas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

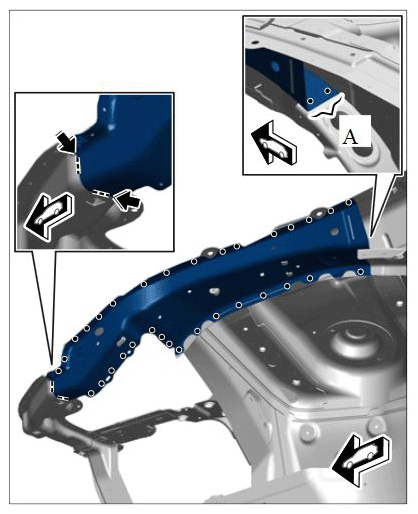

   Installing longitudinal member for wheel housing

3. Install reinforcements.
   1. 3.1. Apply adhesive to the marked areas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

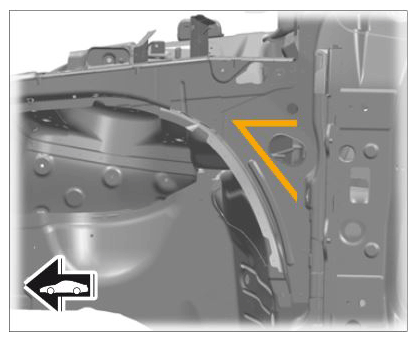

   Applying adhesive

4. Resistance spot-weld the reinforcement.
   1. 4.1. Apply a full weld to the area -A & B-  using inert gas.
   2. 4.2. Spot-weld area -C-  using inert gas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

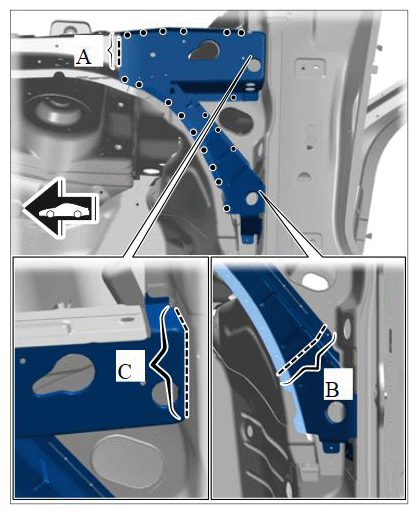

   Installing reinforcements

5. Install wing bracket.
   1. 5.1. Resistance spot-weld the wing bracket in area -A-  .
   2. 5.2. Apply a full weld to areas -arrows-  using inert gas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

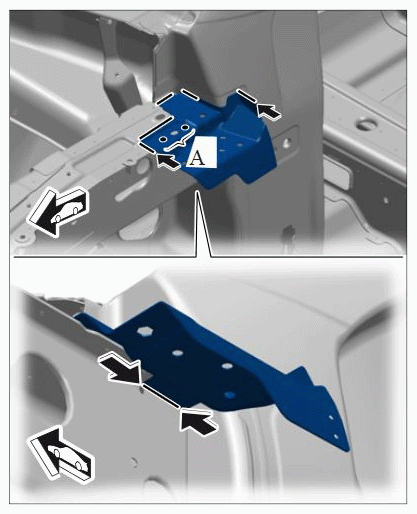

   Installing wing bracket
