Preparing Headlight Mounting For Installation

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

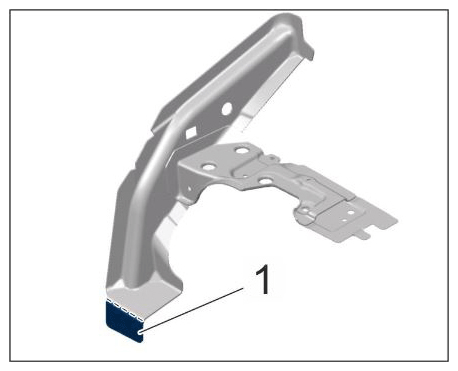

Cut off tab at the bottom of the new part -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cutting off tab

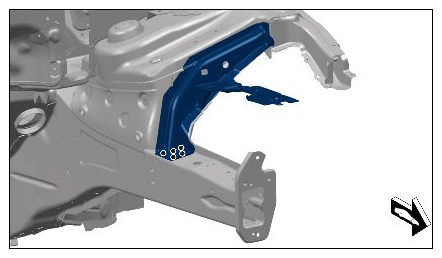

Fit in support and secure it to the body.
Drill holes for blind rivets. Diameter: 6.6 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drilling holes
Remove support.

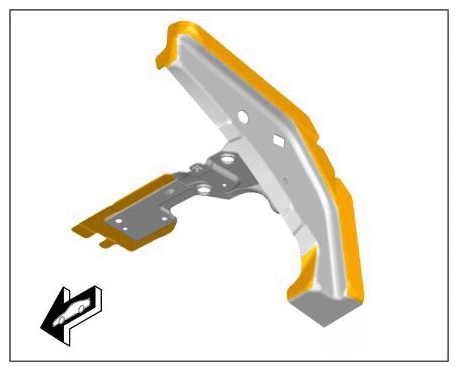

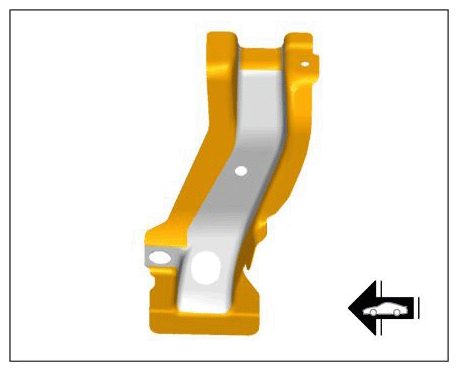

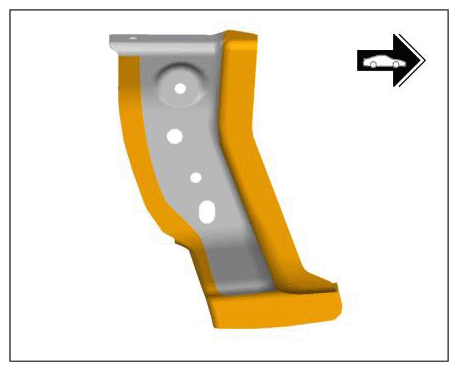

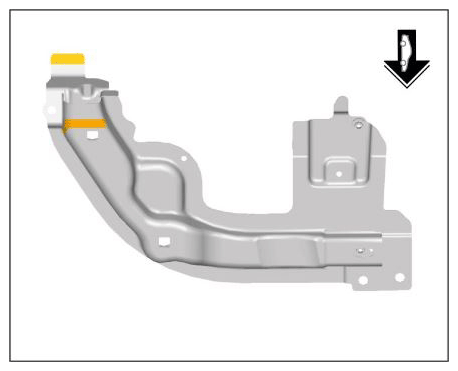

Prepare connection areas for welding.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing for welding

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing for welding

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing for welding

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing for welding

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing for welding

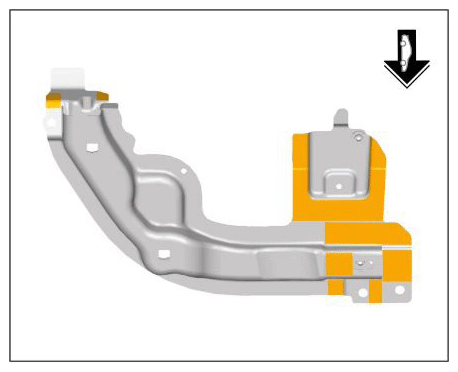

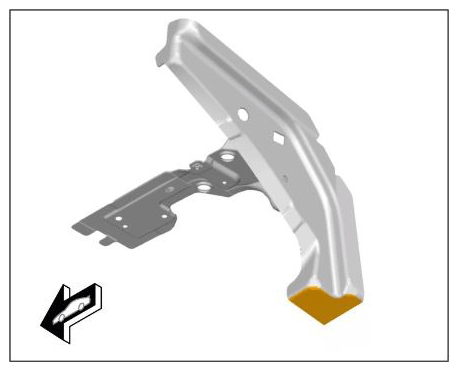

Prepare connection areas for bonding; Refer to WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE 000.043.206.30 , WM 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00 ..

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing for bonding

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing for bonding
