Removing Front Wheel Housing Liner
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information:
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment .
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant .
- Some steps must be carried out automatically .
- Some of the repair illustrations show only one side of the vehicle .

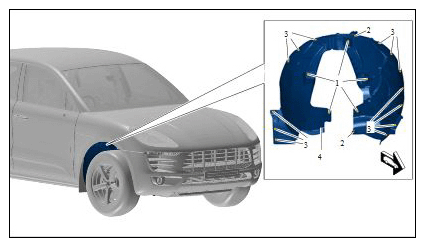

- Unscrew fastening screws -3- .
- Unscrew and remove fastening nuts -1- .
- Unscrew fixing clips -2- .
- Loosen and remove wheel housing liner -4- .
