Removing Guide Wedge

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew fastening screws -1-  .

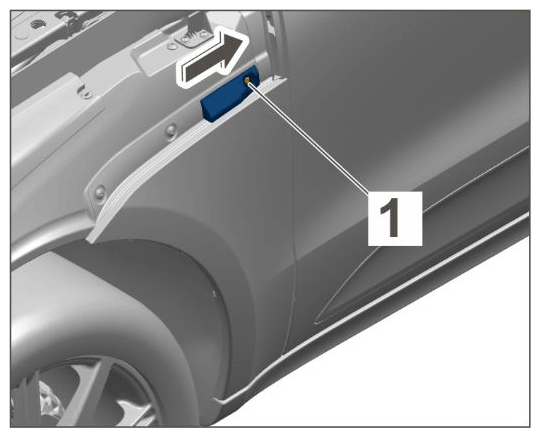

    Fig 1: Fender Guide Wedge Component Location
    G11978405Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Guide wedge

  2. Pull off guide wedge. -arrow-
