Preparing Spring Strut Mount For Installation

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

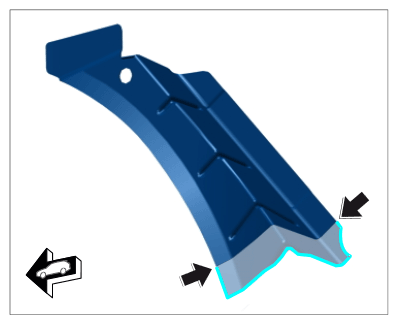

Cut reinforcement in area -arrows- leaving an overlap to the remaining piece of 30 mm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing reinforcement
Fit in and secure reinforcements.

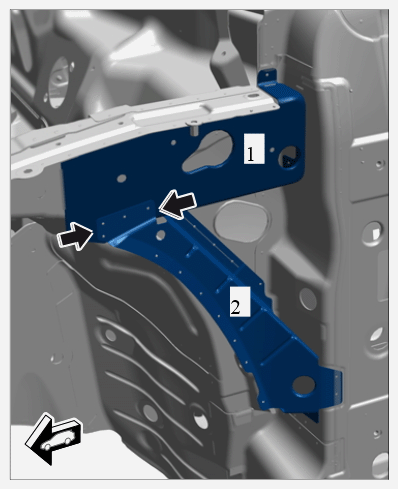

1. 2.1. Tack-weld upper part -1 - and lower part -2- of reinforcement -arrows-.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing reinforcements

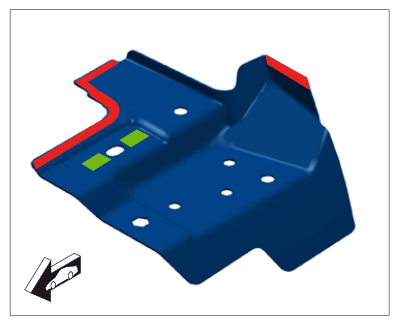

Remove reinforcements.
1. 3.1. Resistance spot-weld the marked area -A-.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing reinforcements

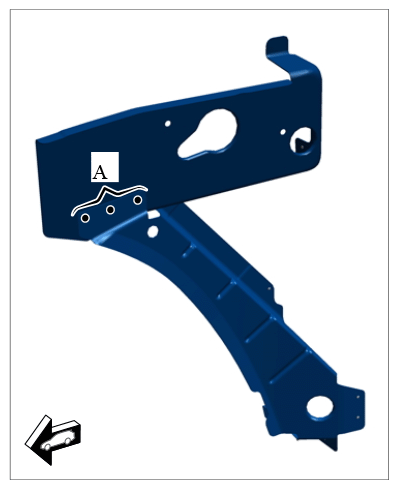

Prepare wing bracket for welding.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing wing bracket

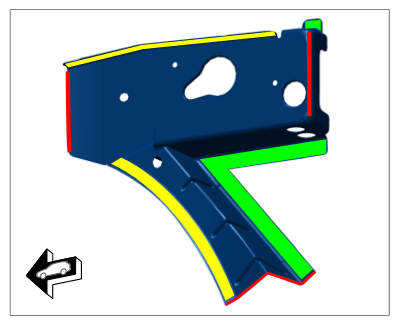

Prepare reinforcement for bonding and welding.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing reinforcements
Drill holes for plug-welding in the marked areas -A- on the spring strut mount using a drill bit with a diameter of → Diameter: 8.0 mm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing spring strut mount

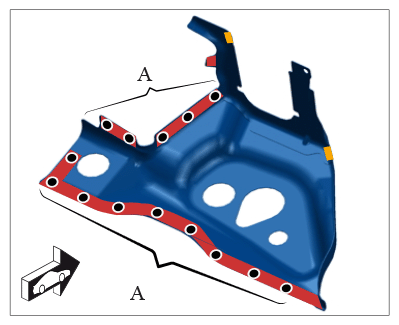

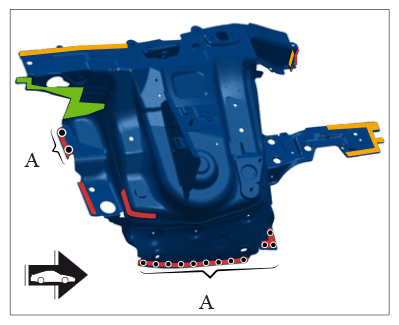

Drill holes for plug-welding in the marked areas -A- on the lower part of the plenum panel using a drill bit with a diameter of → Diameter: 8.0 mm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing lower part of plenum panel

Orange	Resistance spot-welding
Green	Resistance spot-welding + bonding
Red	Plug-welding/apply a full weld using inert gas without bonding
