Removing Upper Part Of Lock Carrier
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information:
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment .
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant .
- Some steps must be carried out automatically .
- Some of the repair illustrations show only one side of the vehicle .
- Unclip lid lock cable from the bracket and disengage it. Refer to 551419 REMOVING AND INSTALLING CABLE FOR FRONT LID LOCK .

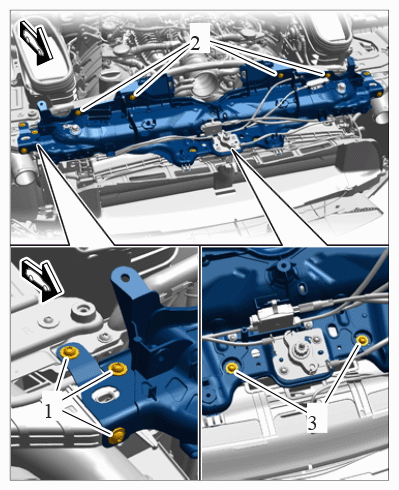

- Unscrew fastening screws -1- on the lock carrier and body.
- Unscrew fastening screws -2- on the transverse strut.
- Unscrew fastening screws -3-
on cooling-air flaps.

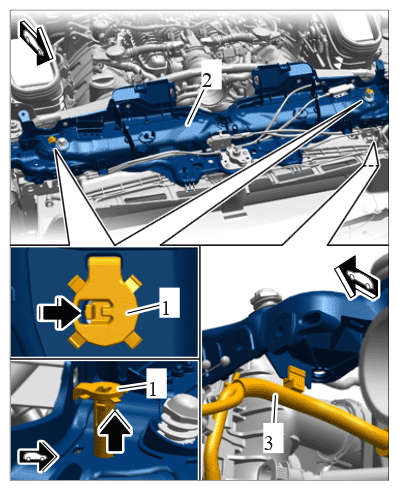

Mounting for upper part of lock carrier - Actuate release -arrow- and pull out fastening plug -1- (-arrow-) .
- Unclip wire harness -3-
on upper part of lock carrier -2-
.
Fastening plug, wire harness on upper part of lock carrier - Push upper part of lock carrier forward, guide the guide out of the radiator and remove it.
