Preparing (Inner) Rear Wheel Housing For Installation: Notes

  1. Prepare (inner) rear wheel housing for bonding and welding.

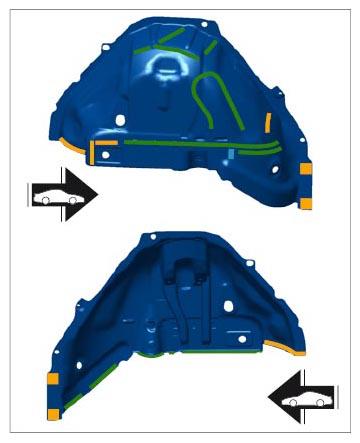

    Fig 1: Identifying Rear Wheel Housing (Inner)
    G10031005Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Prepare seat belt bracket for bonding and welding.
    1. 2.1. Drill holes for plug-welding in the marked areas -A-  using a drill bit with a diameter of → Diameter: 8.0 mm  .

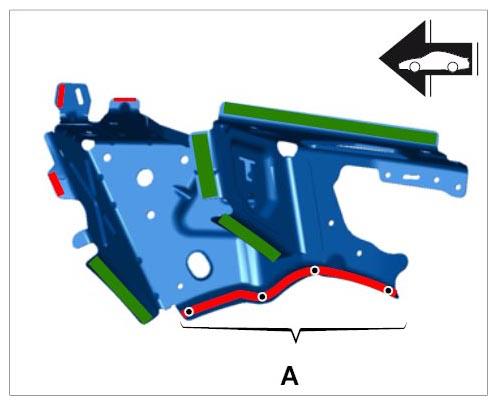

      Fig 2: Identifying Inner Side Section
      G10031006Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      Green Resistance spot-welding + bonding
      Blue Bonding
      Red Plug-welding/apply a full weld using inert gas without bonding
      Orange Resistance spot-welding
