WM 535655 Replacing Side Section Lower Part (All Models): Tools

Designation Type Number Description
Hot-air blower Service equipment WE 1119
Body alignment system package Service equipment WE 1121
Special electric cutter Service equipment WE 1137
Pneumatic Spotweld Remover, Vario Drill WS 90 Service equipment WE 1139
Hand-cartridge gun Service equipment WE 1141
Resistance spot welder Service equipment WE 1311
Inverter welder MIDIspot-QSVM-12000 Service equipment WE 1312
Resistance spot welder Service equipment WE 1313
Blind riveting tool TAURUS 4 Service equipment WE 1348
G10030977Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Aluminum tool set with trolley Service equipment WE 1350
Resistance spot welder Service equipment WE 1352
Measuring and alignment system, professional Service equipment WE 1398
Mobile extraction unit, aluminum Service equipment WE 1507
Body saw Service equipment WE 1508

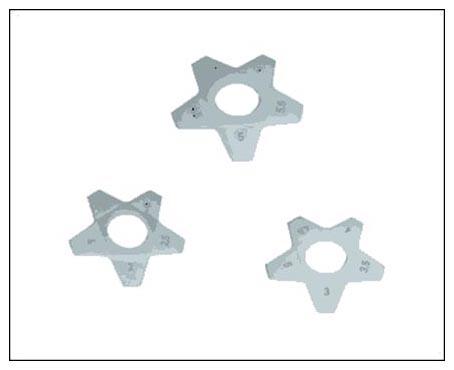

Star gauges for body gap dimensions Special tool Nr.127-1
G10030978Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Spotweld drill Commercially available tool Nr.129
G10030979Courtesy of PORSCHE CARS NORTH AMERICA, INC.

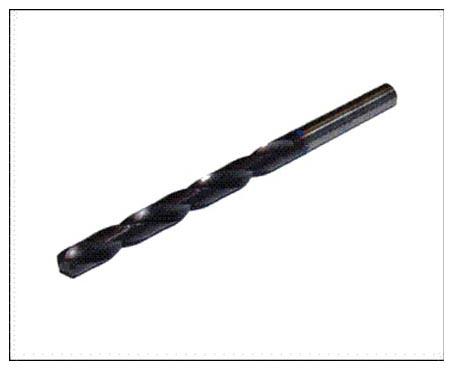

Twist drill Commercially available tool Nr.201
G10030980Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Countersink Commercially available tool Nr.202
G10030981Courtesy of PORSCHE CARS NORTH AMERICA, INC.
